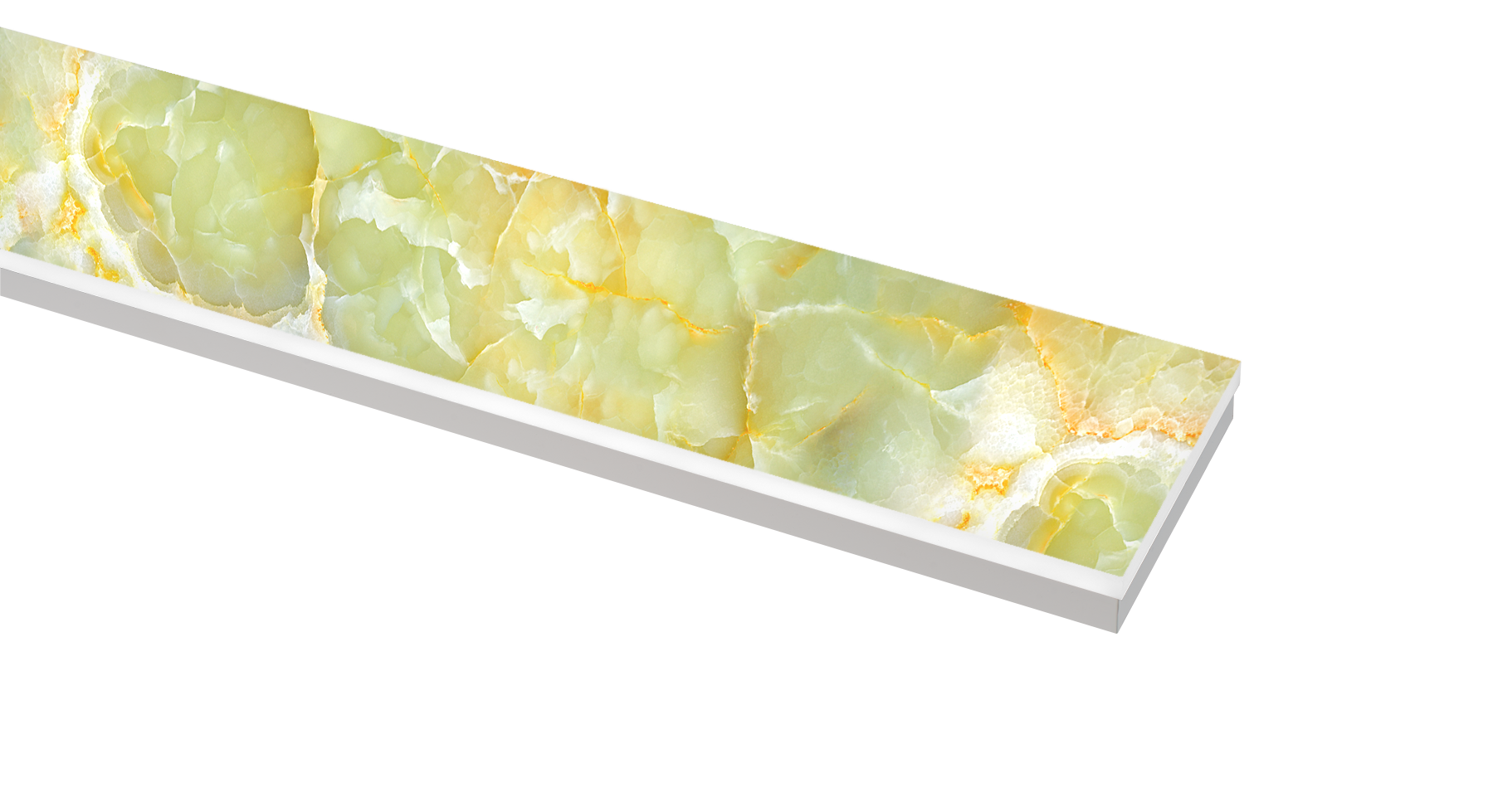

Flush

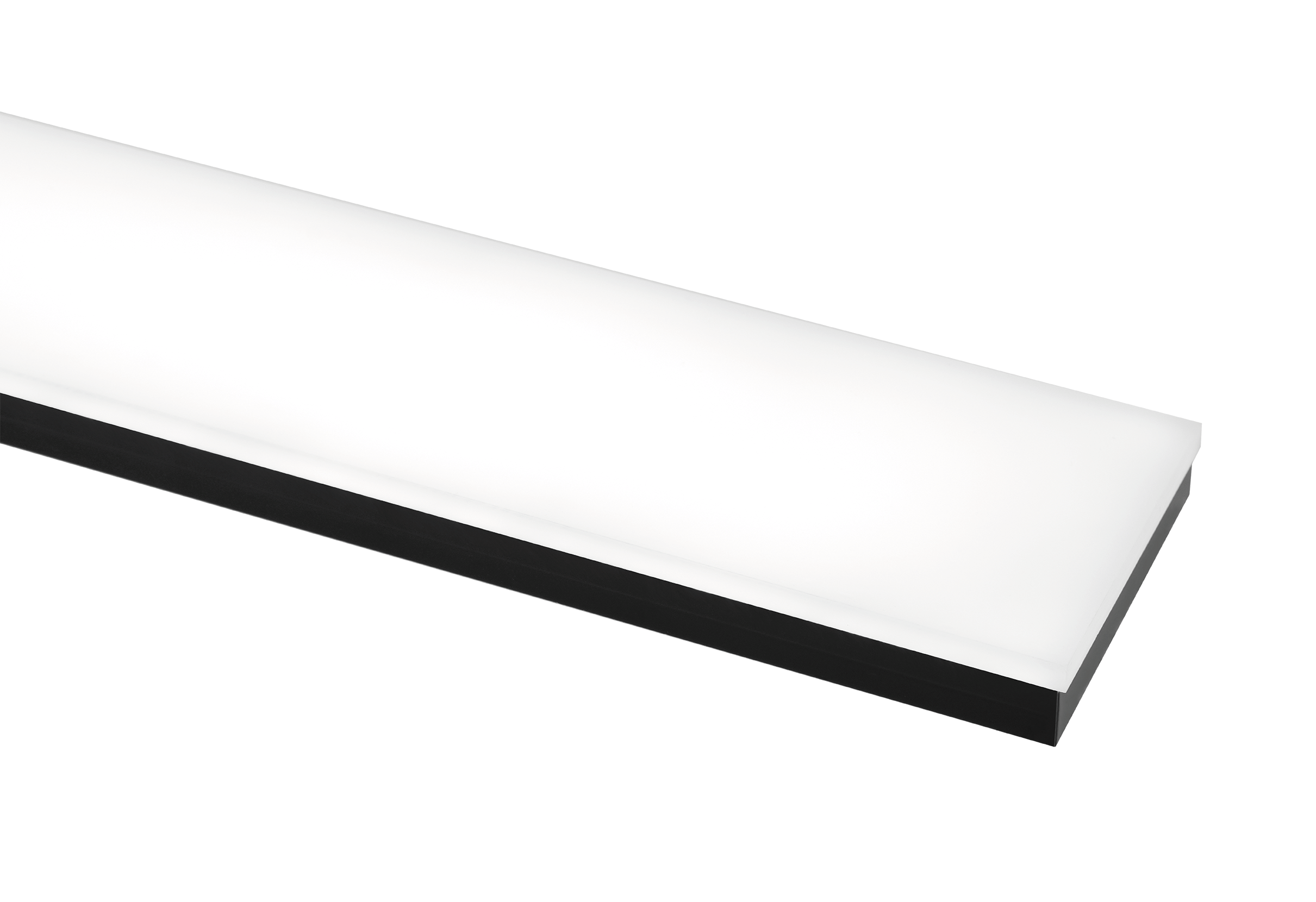

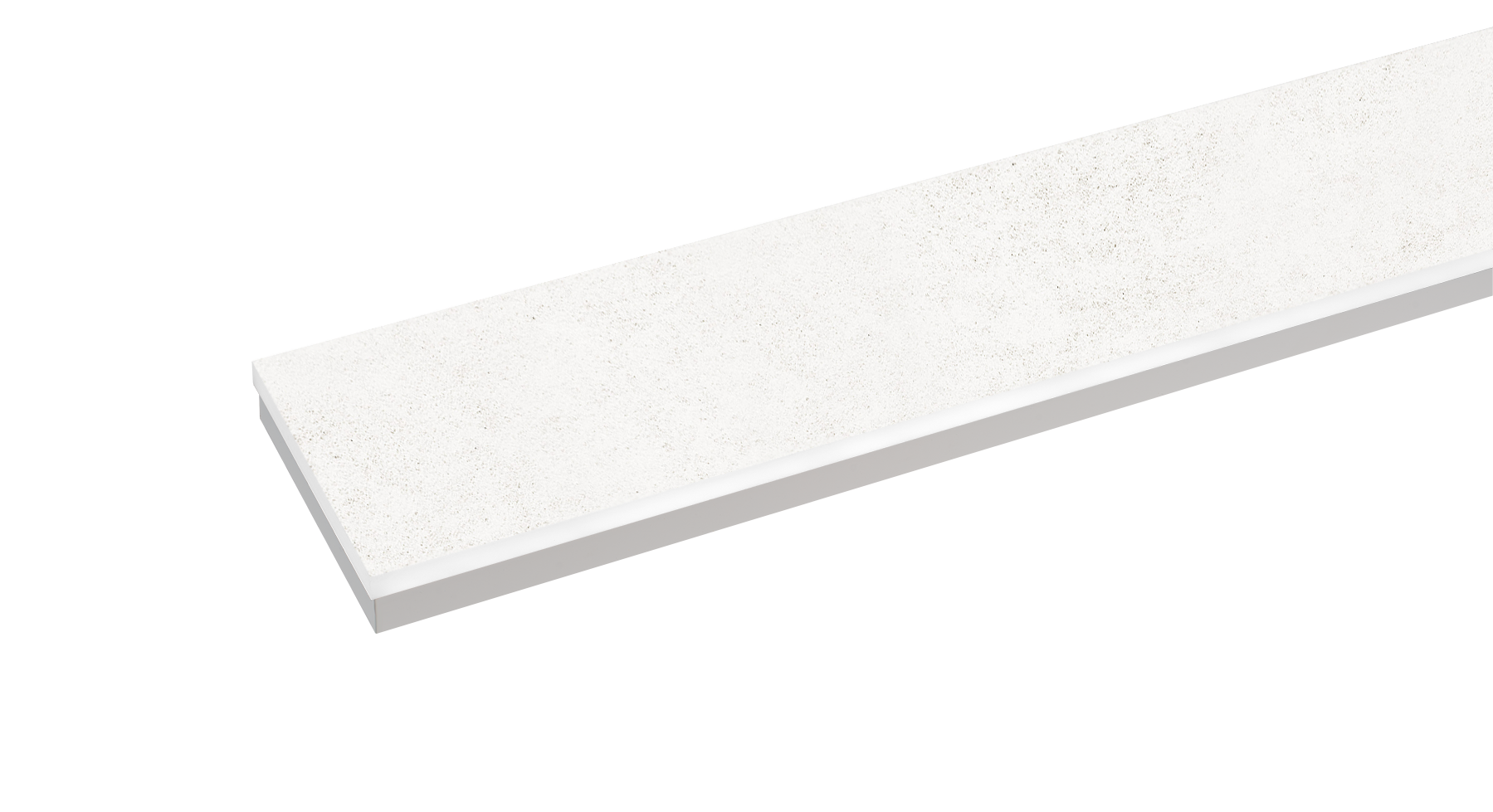

CUSTOM UNIFORM LIGHTING BARS

FLUSH is the perfect linear lighting solution for modern and minimalist designs. This fixture emits uniform and shadow-free light, thanks to its indirect lighting emission. Furthermore, FLUSH is highly customizable,
with a maximum width of 203.2 mm (8 in) and a customizable length of up to 3048 mm (120 in).

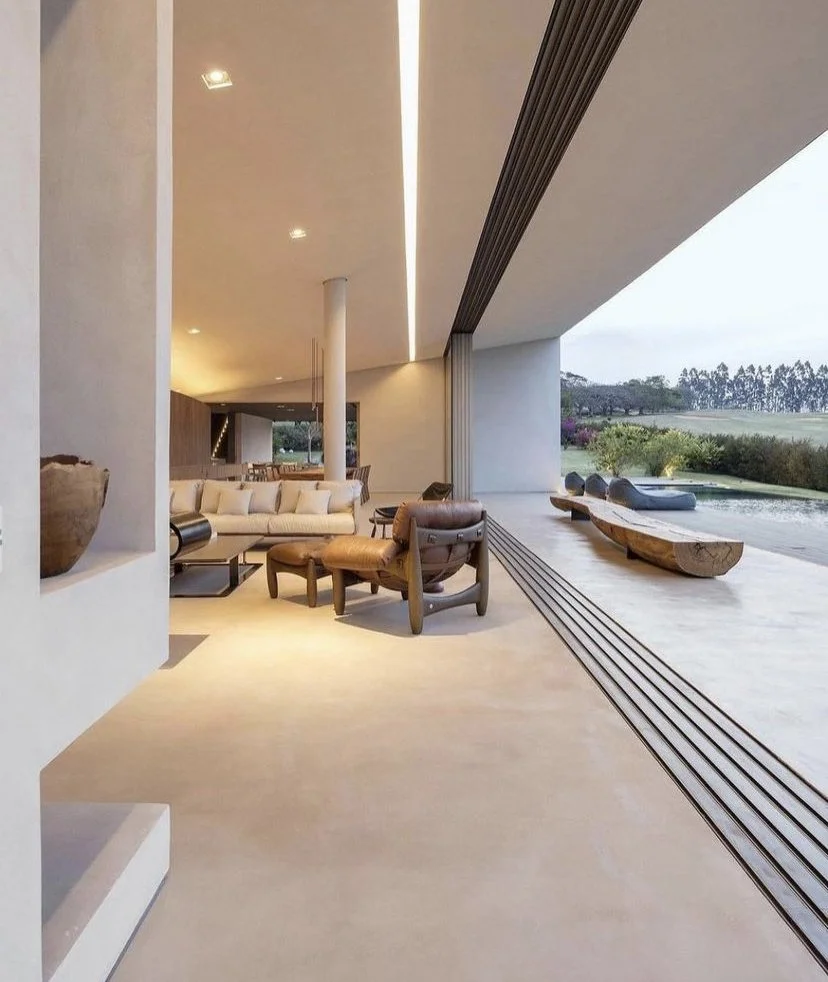

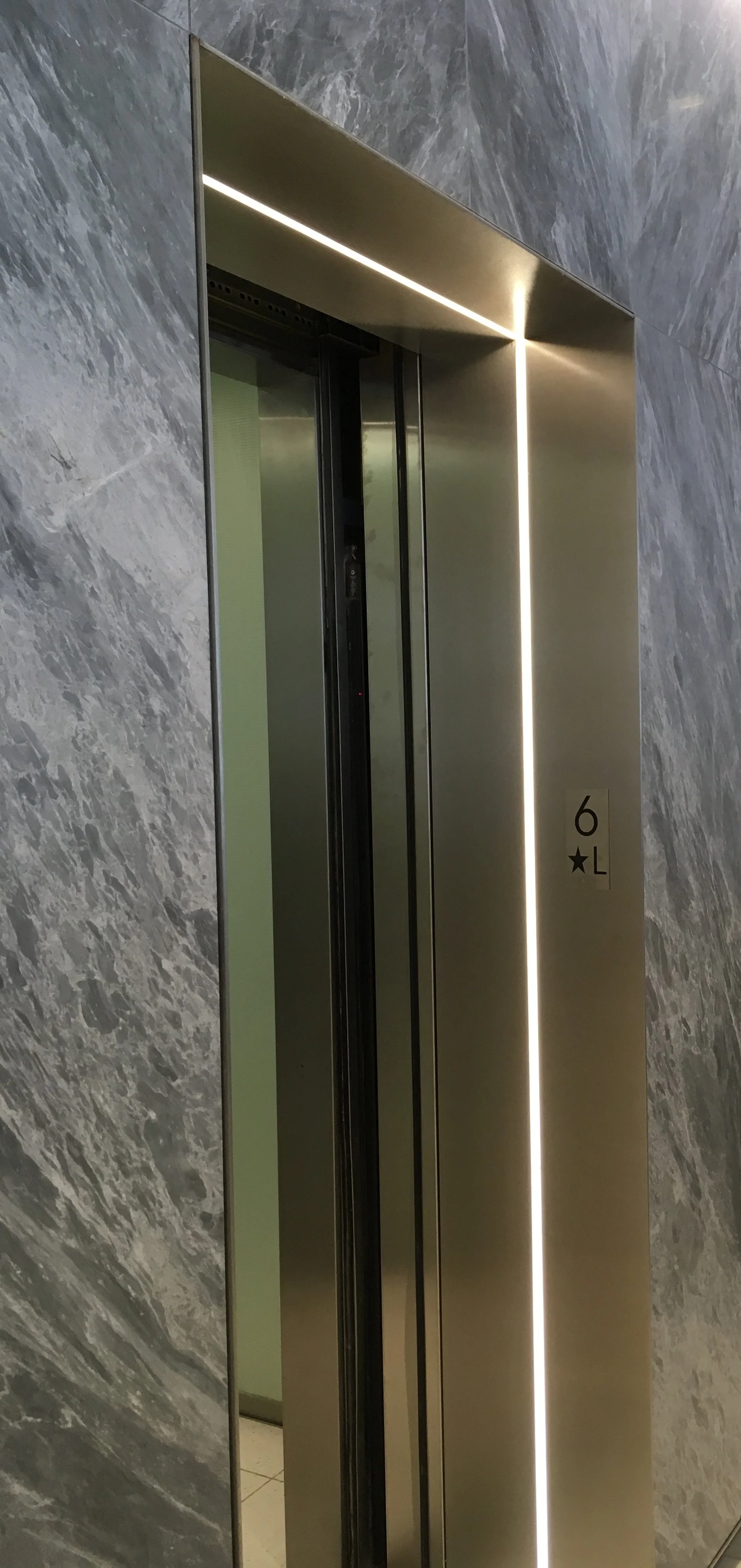

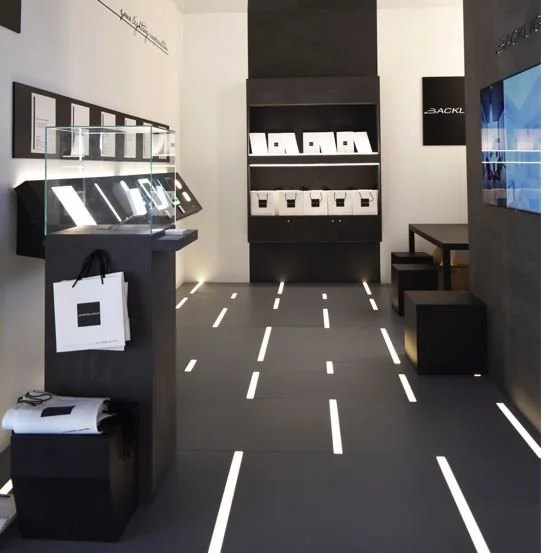

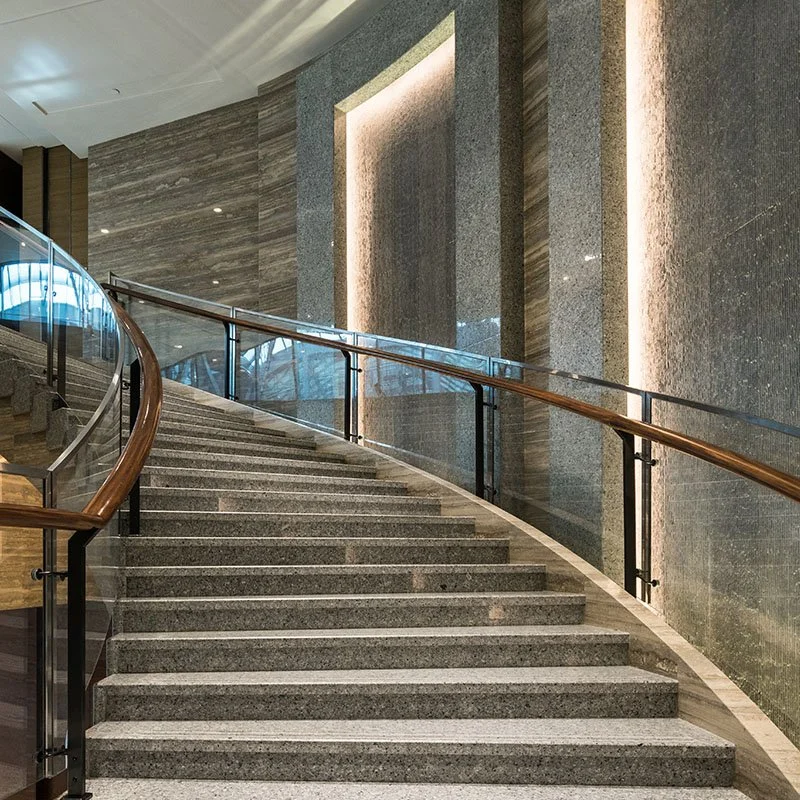

Its installation is very versatile, as it can be magnetically mounted and installed both recessed and surface-mounted, offering great flexibility in choosing the installation location, such as walls, ceilings, floors, and furniture.

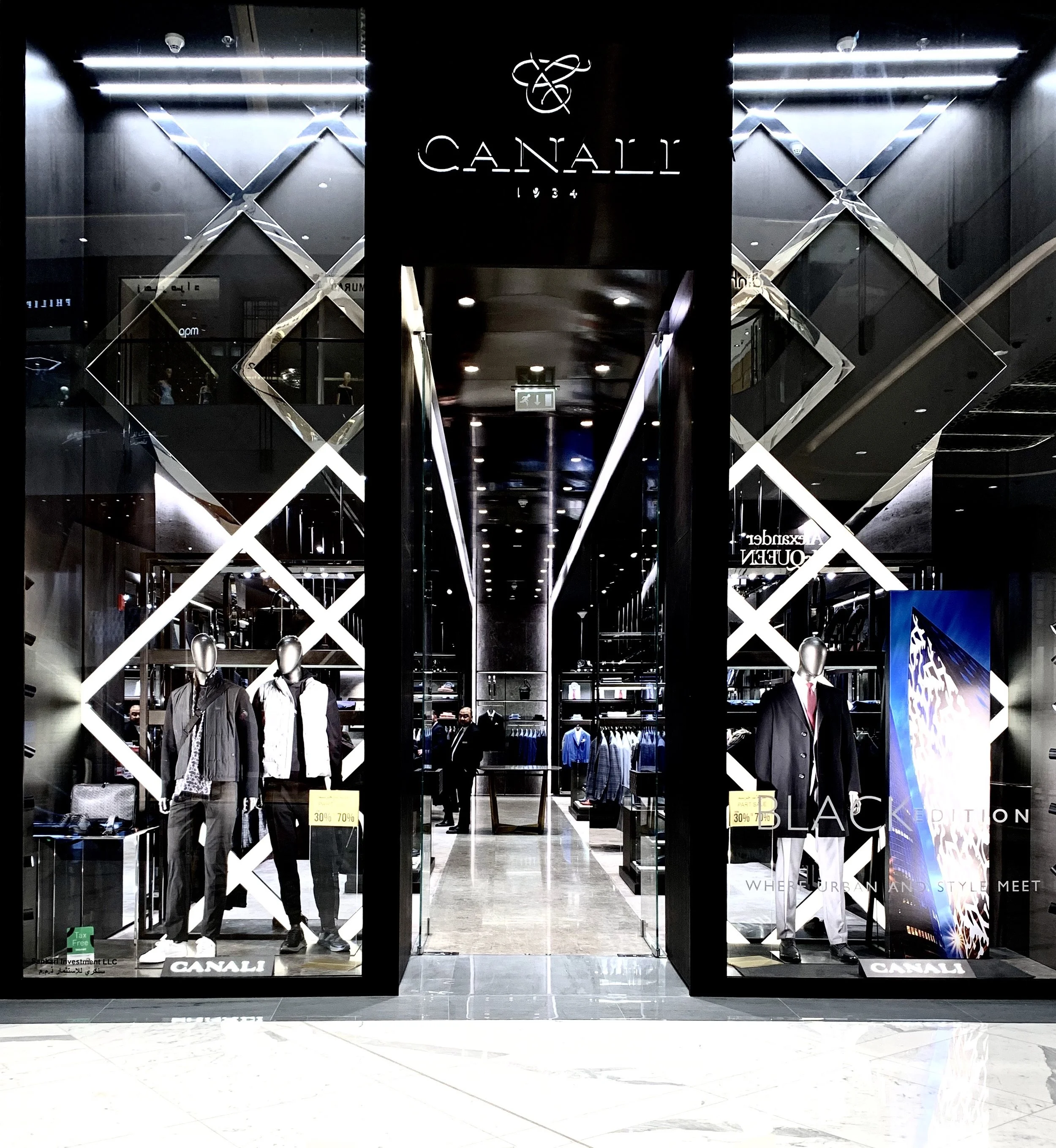

FLUSH is perfect for illuminating any type of spaces, whether residential or commercial, such as offices, shops, and restaurants.

Thanks to its elegance and simplicity, FLUSH perfectly adapts to any type of interior design, from the most modern to the most traditional

Technical

specs

Aluminium White RAL 9010
(Custom RAL under request)

PMMA ( Acrylic) Satin Anti-Reflective (Gloss under request)

LED PCB
STANDARD WIDTH *
(mm) 15.24 - 25.4 - 30.48 - 35.56 - 40.64 - 50.8 - 76.2 - 101.6 - 152.4 - 203.2 mm
(in) 0.6 - 1.0 - 1.2 - 1.4 - 1.6 - 2.0 - 3.0 - 4.0 - 6.0 - 8.0 in
*custom widths under request
LENGTH
(mm) custom between 127.0 and 3048.0 mm (in) custom between 5.0 and 120 in
THICKNESS
( mm) 20.0 mm ( in) 0.79 in
WEIGHT
25,0 Kg per sq / Meter - 2,3 Kg per sq /FT 55.1 lbs per sq / Meter - 5.7 lbs per sq /FT
EMISSION DIFFUSED
KELVIN 2000K-3000K-3500K-4100K-5000K-TW 2000 to 6500K- TW 2700 to 6500K - RGB - DIM to Warm - RGBW - RGBTW
LUMENS

Standard bright 890 lm per linear meter (280 lm per linear ft) - High bright 1632 lm per linear meter (570 lm per linear ft)
CRI>95
R9>90
MacAdam 3 Step
INPUT 24VDC
POWER CONS.
Standard bright (14 W/mt - 4.5 W/ft) - High bright (28 W/mt - 9 W/ft)
DRIVER
AC DC 24V DC OUTPUT (class 2 Power Unit)
DIMMABILITY

0-10V, Dali, DMX, ELV/MLV, Lutron Ecosystem, other systems under request
