FORSHELVES

Uniform Lighting Panels on Measure

for Shelves

FORSHELVES

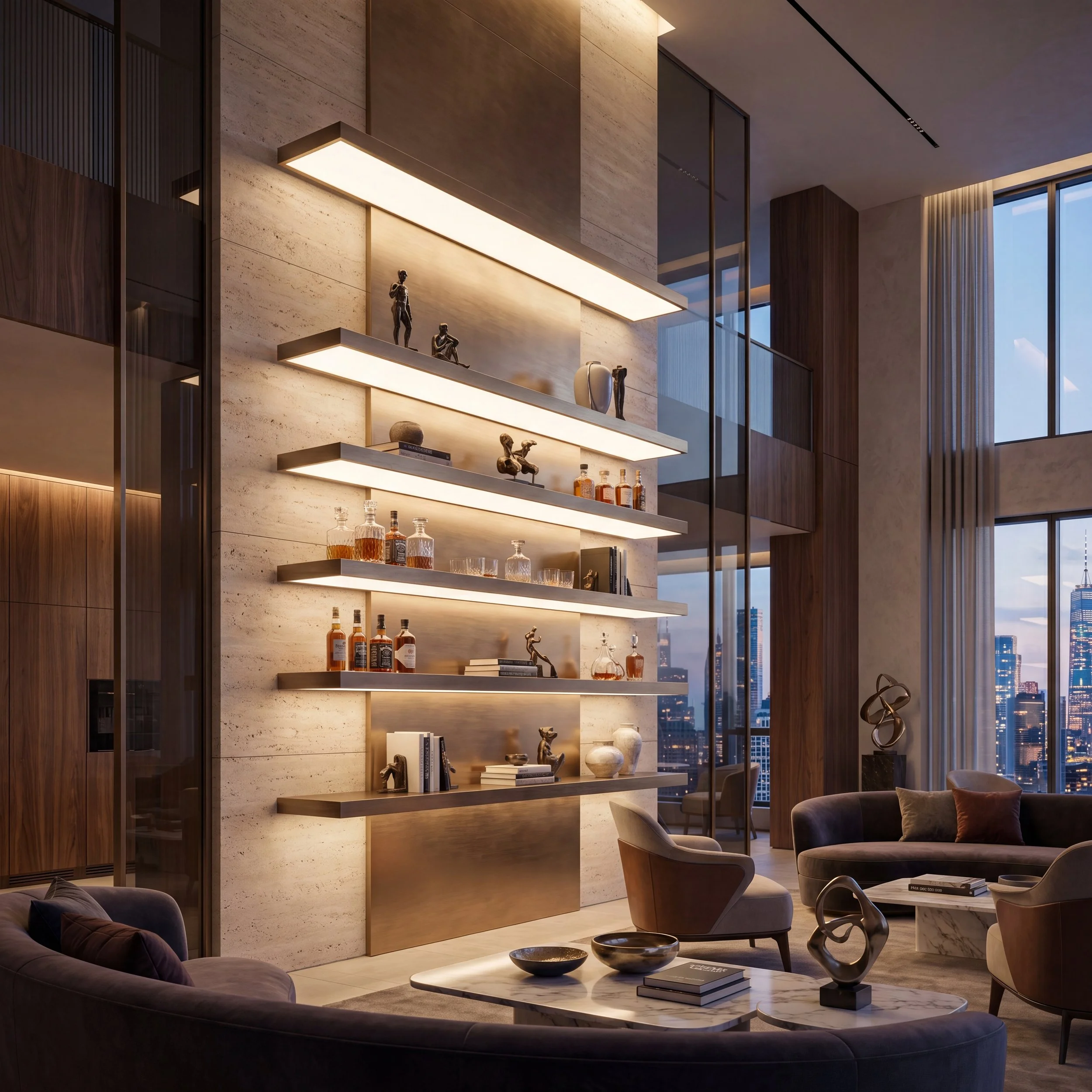

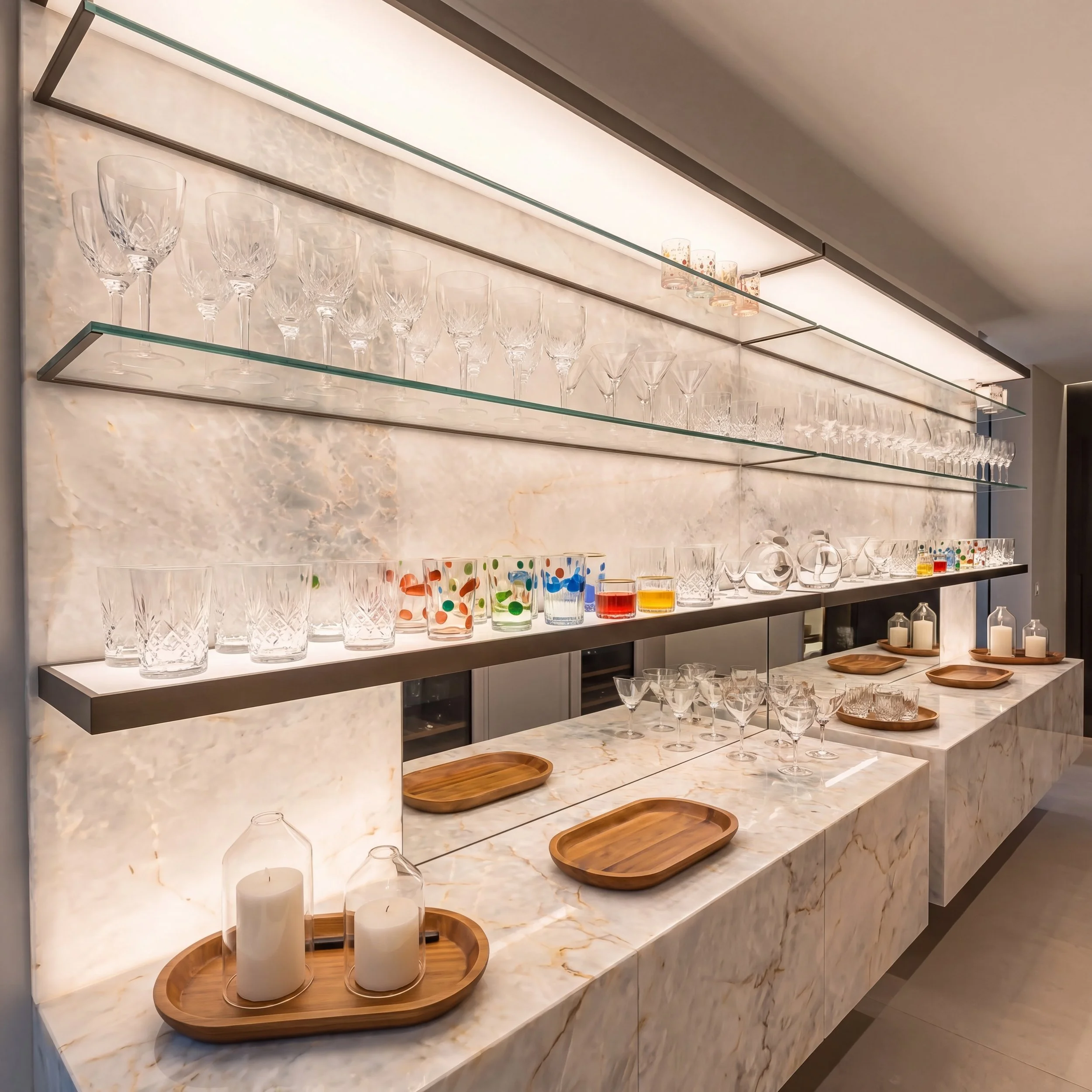

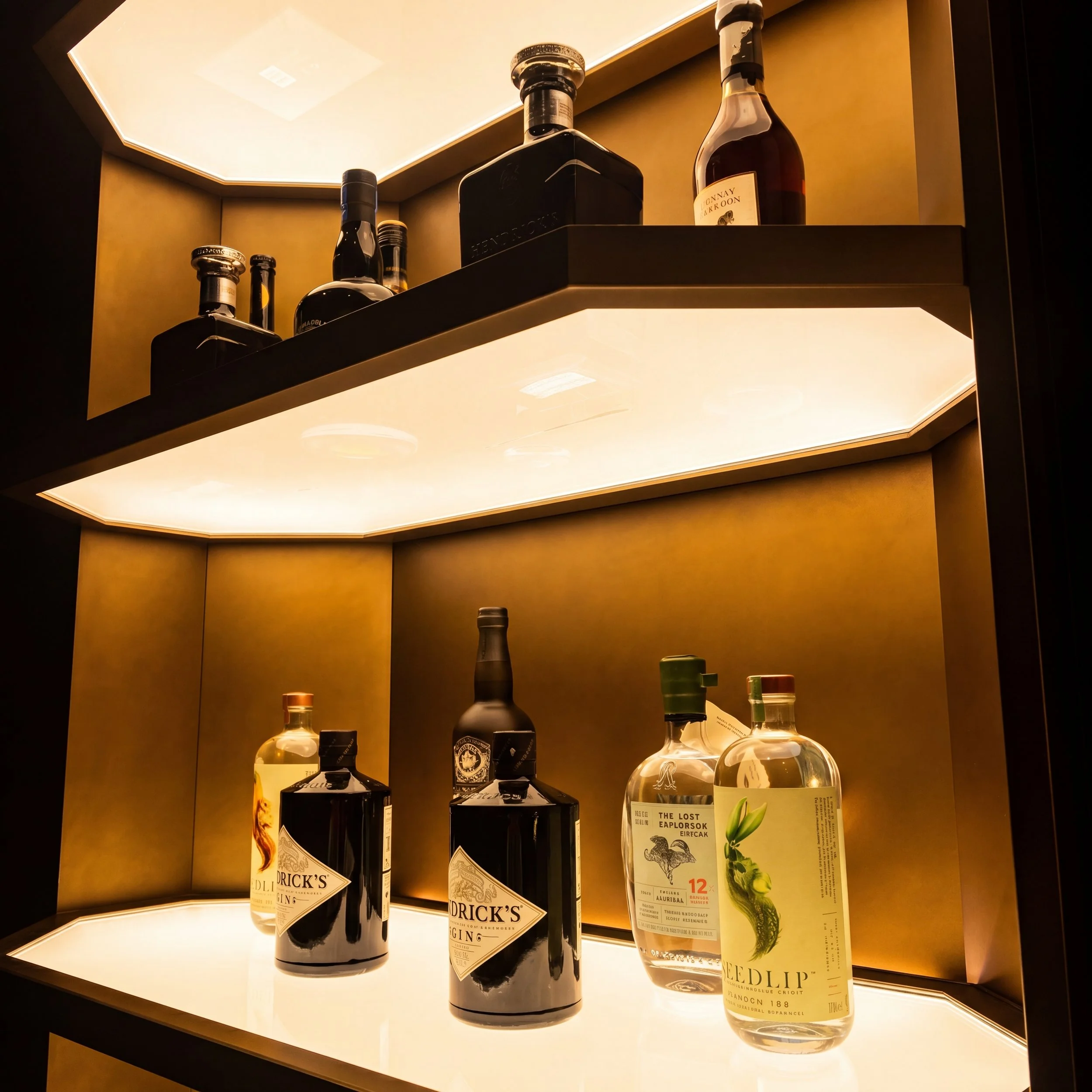

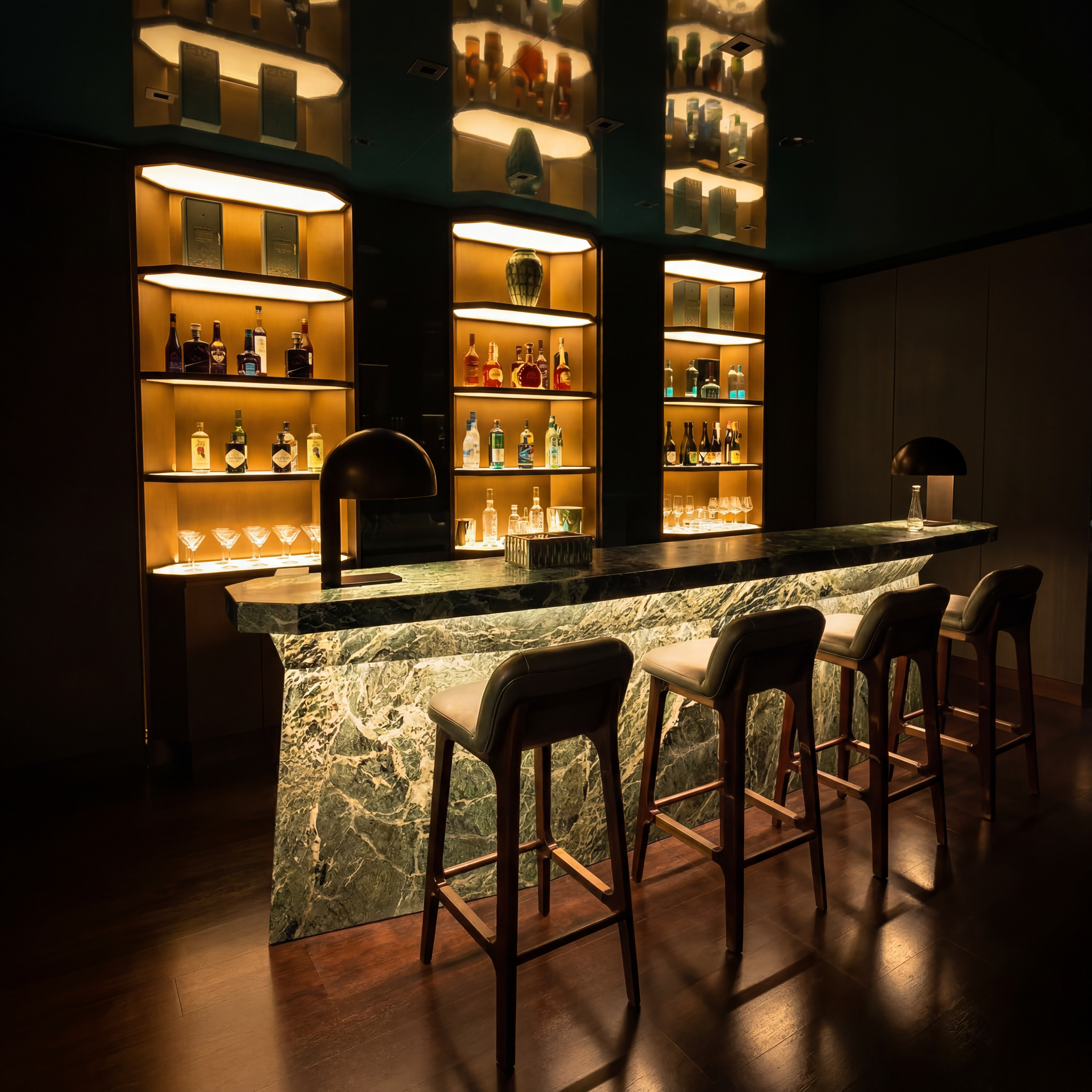

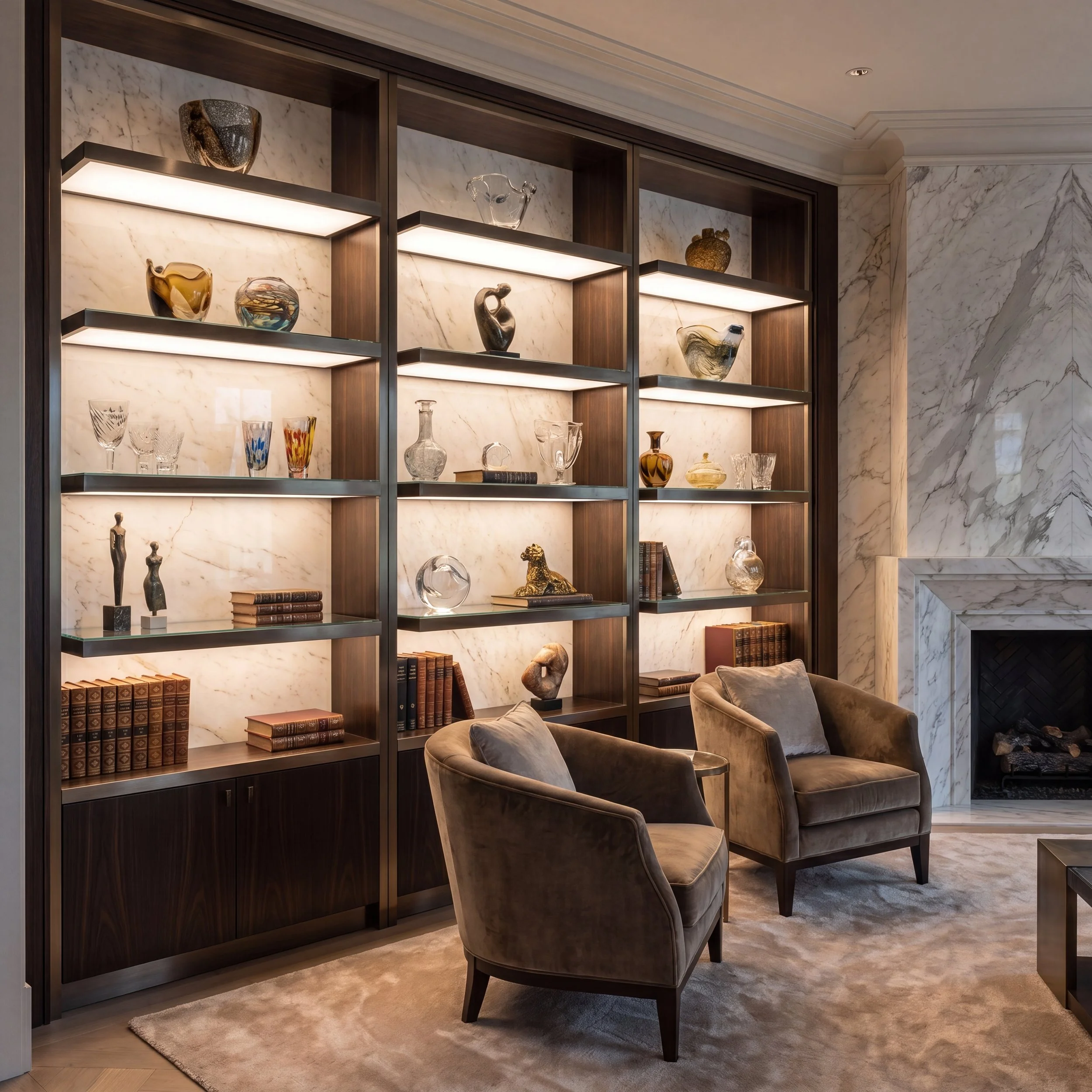

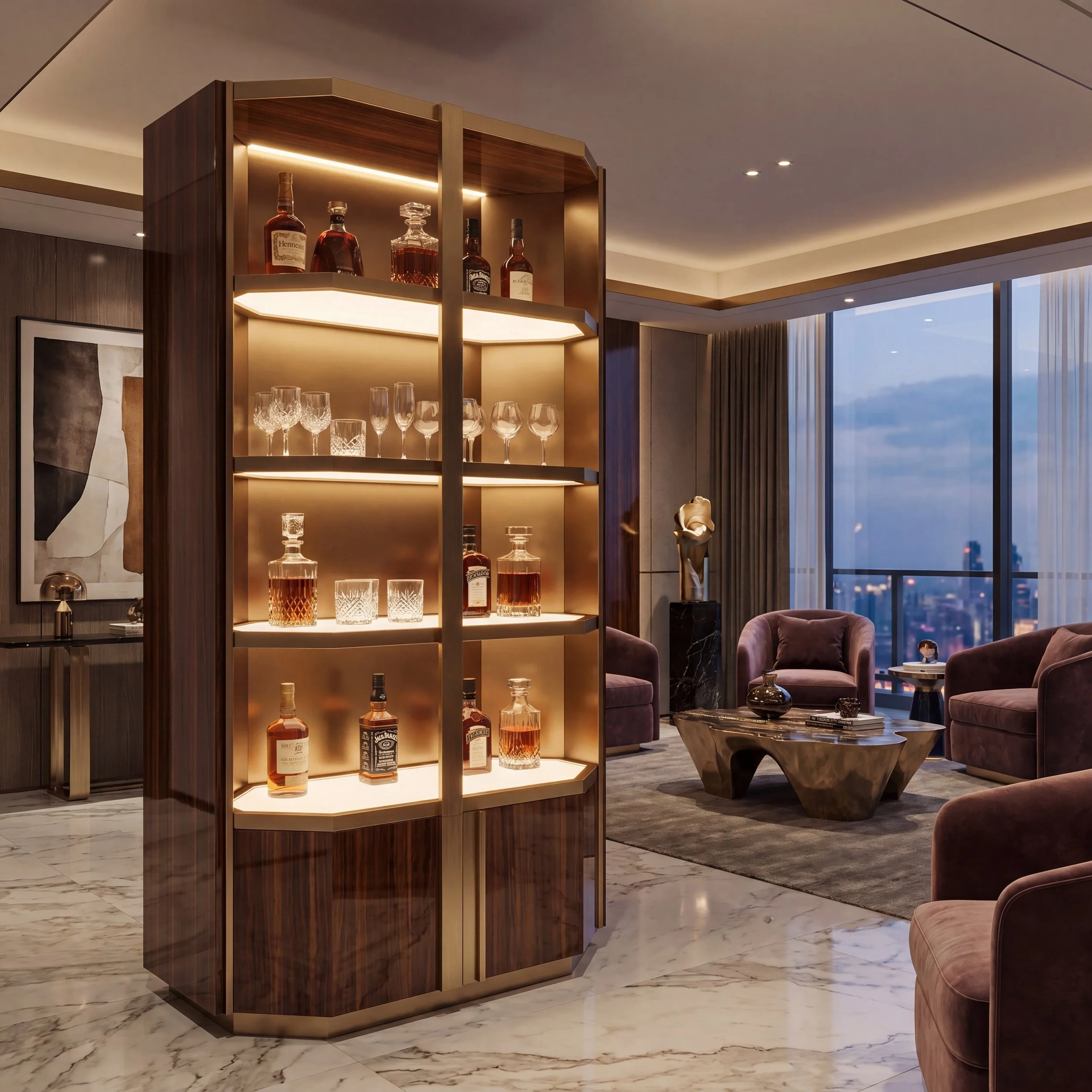

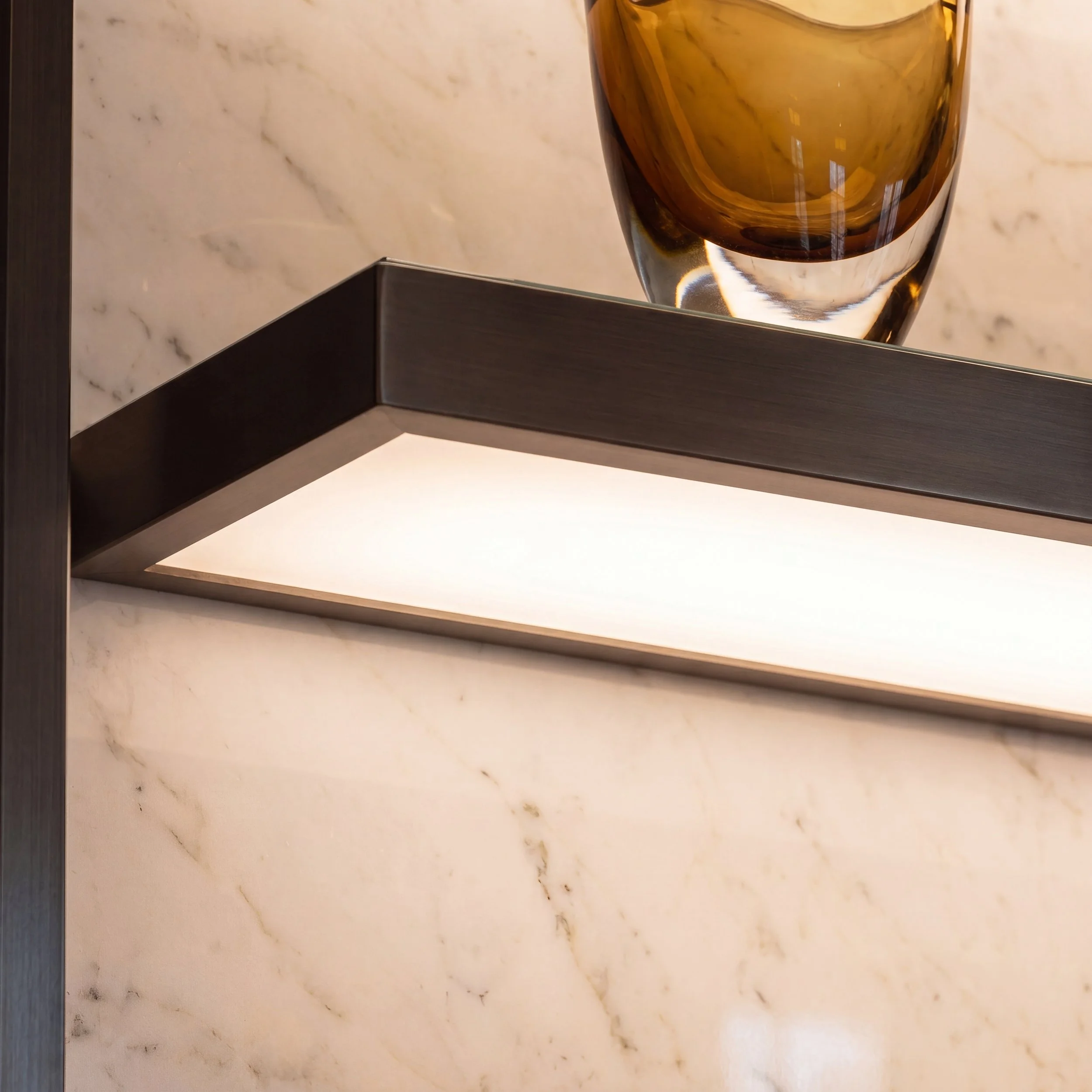

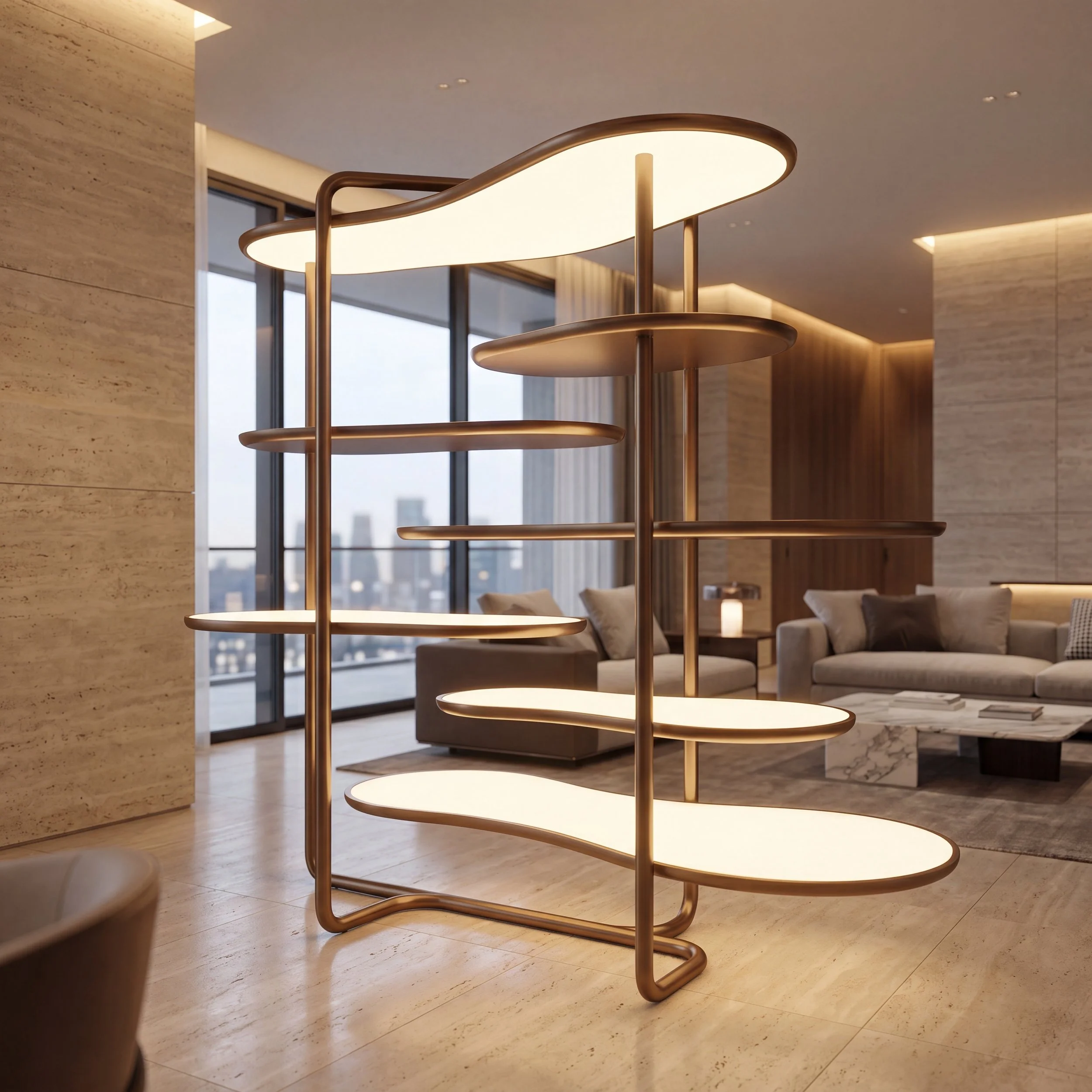

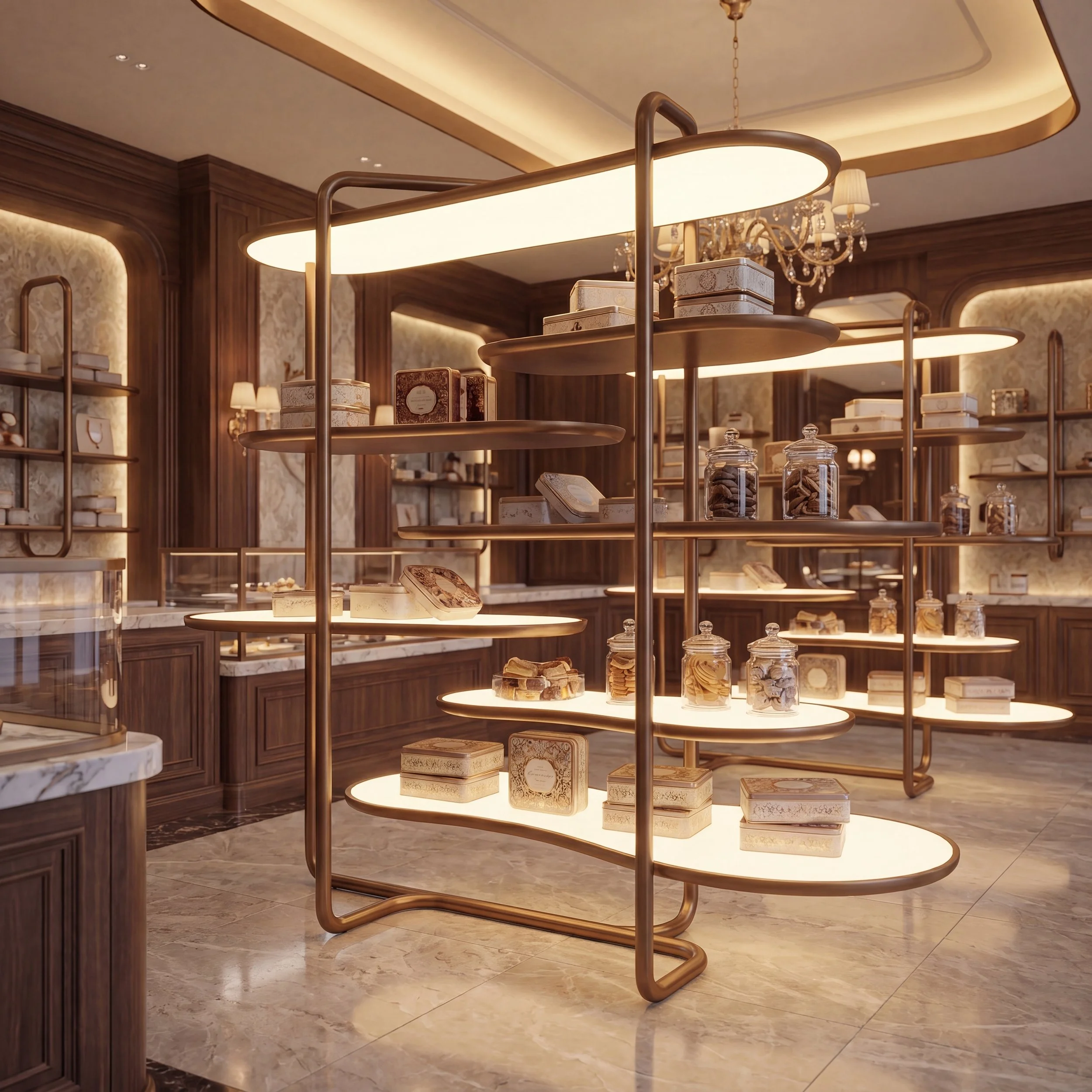

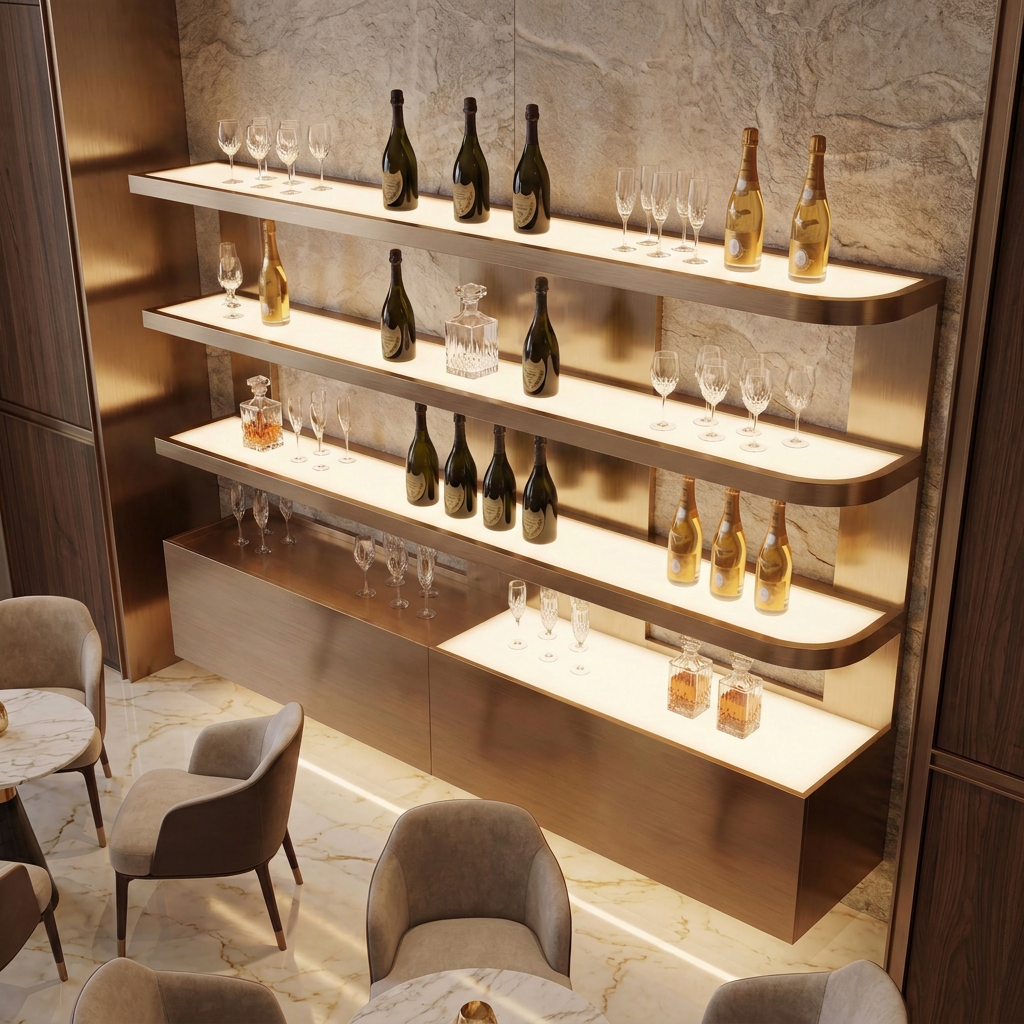

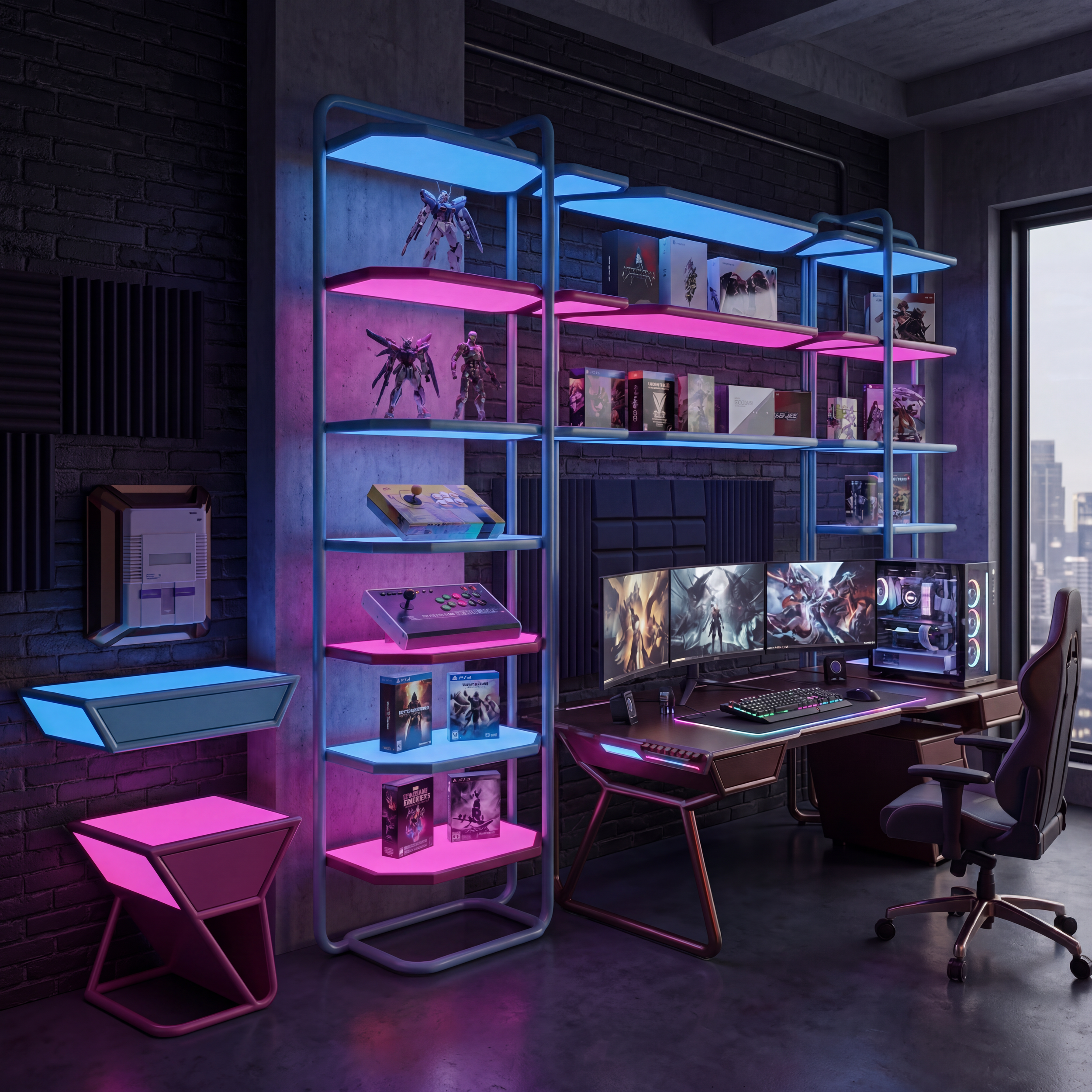

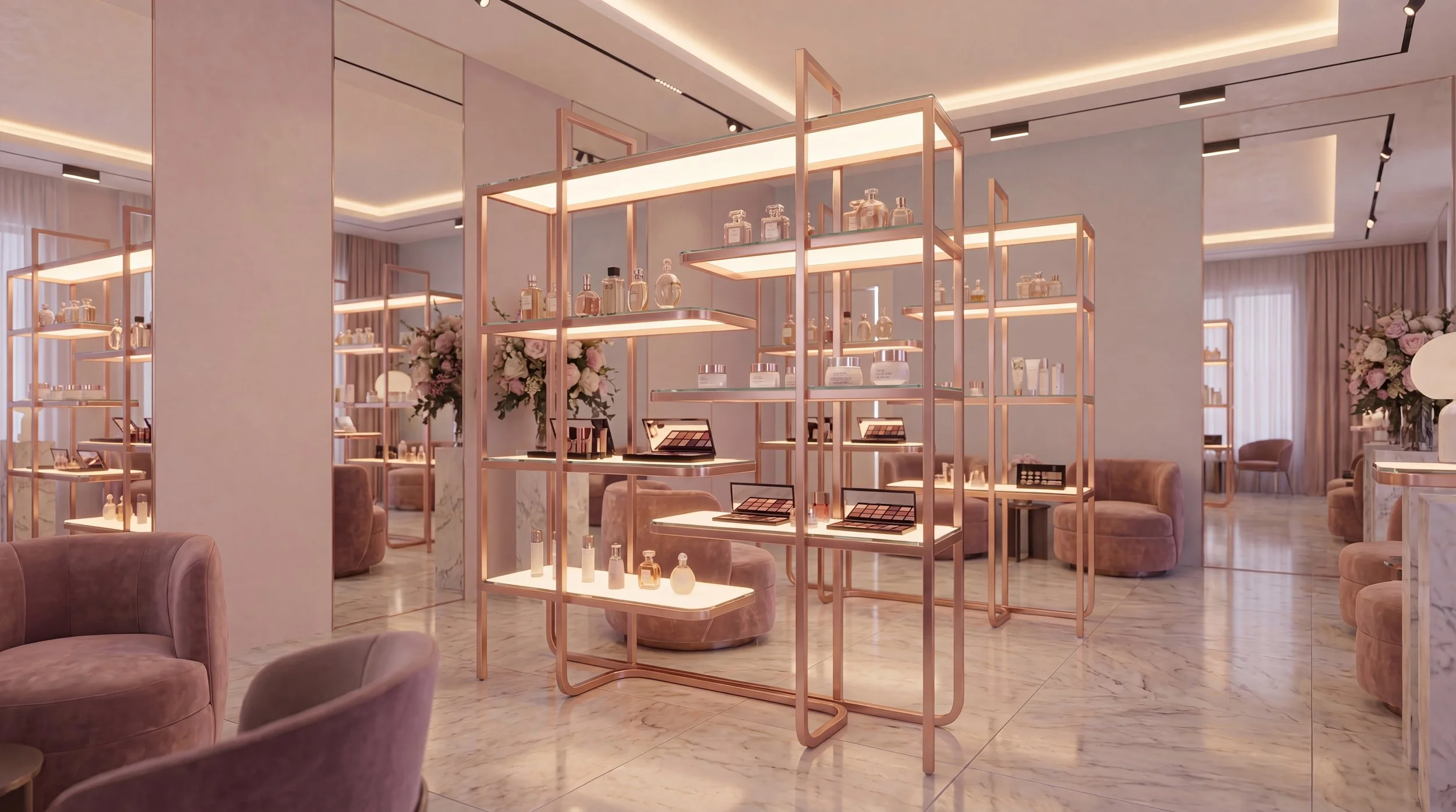

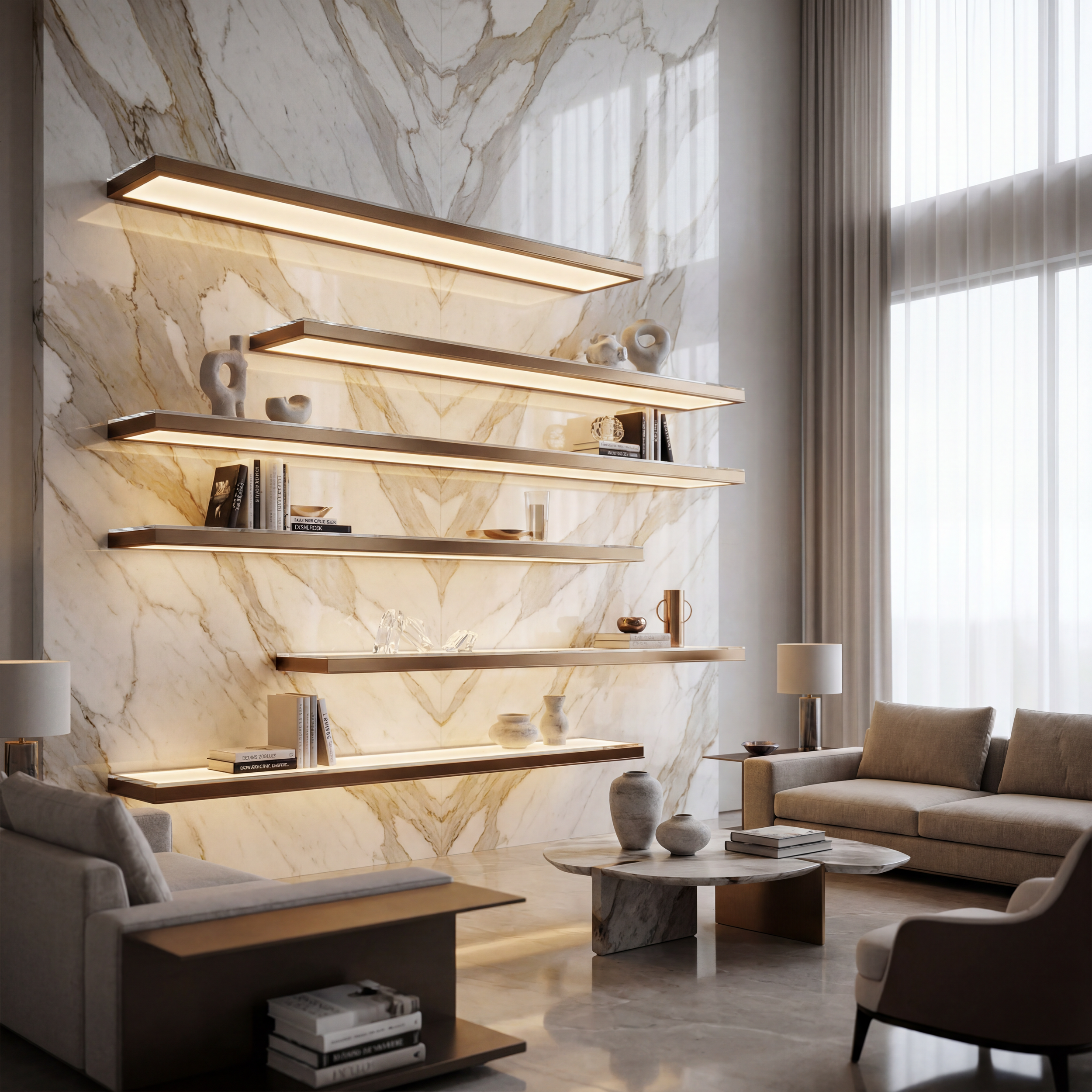

Transform your shelving into a unique architectural feature with Backlight's fully customizable illuminated panels. Available in any size and organic shape, our systems integrate seamlessly into furniture to create elegant, perfectly uniform lighting. Choose from single-sided Up Light or Down Light, Double Face for illumination on both sides, or discover the revolutionary Ghost technology: completely transparent when off, perfectly uniform when on.

Perfectly uniform light
Custom sizes and shapes
CRI 95+
Several Kelvin available

Technical
specs

Aluminium
PMMA transparent
PMMA Opal Satin finish
LED PCB
WIDTH
MM width 203.2 to 1219.2 mm
INCHES width 8.0 to 48.0 in
LENGTH
MM length 203.2 to 3048.0 mm
INCHES length 8.0 to 120.0 in
(Maximum measurements depend on the scope of work and you will find them on the BROCHURE.)
THICKNESS
MM 18.5 mm to 35 mm
INCHES 0.728 “ to 1.378 “
(depending on the model)
WEIGHT
5.12 lbs/sq. ft (25.0 kg/sq. mt)
EMISSION DIFFUSED
KELVIN : various
LUMENS 70 lm delivered for each line meter of long side of panel

CRI>95
INPUT24VDC

POWER CONS.

28W/mt - 9W/ft of longer side of panel
DRIVER

AC DC 24V DC OUTPUT (class 2 Power Unit)
DIMMABILITY

No dimming
0-10V
Dali
DMX
ELV/MLV
Lutron Ecosystem
