FORSKYLIGHT

Uniform Lighting Panels on Measure

for Skylights

FORSKYLIGHT

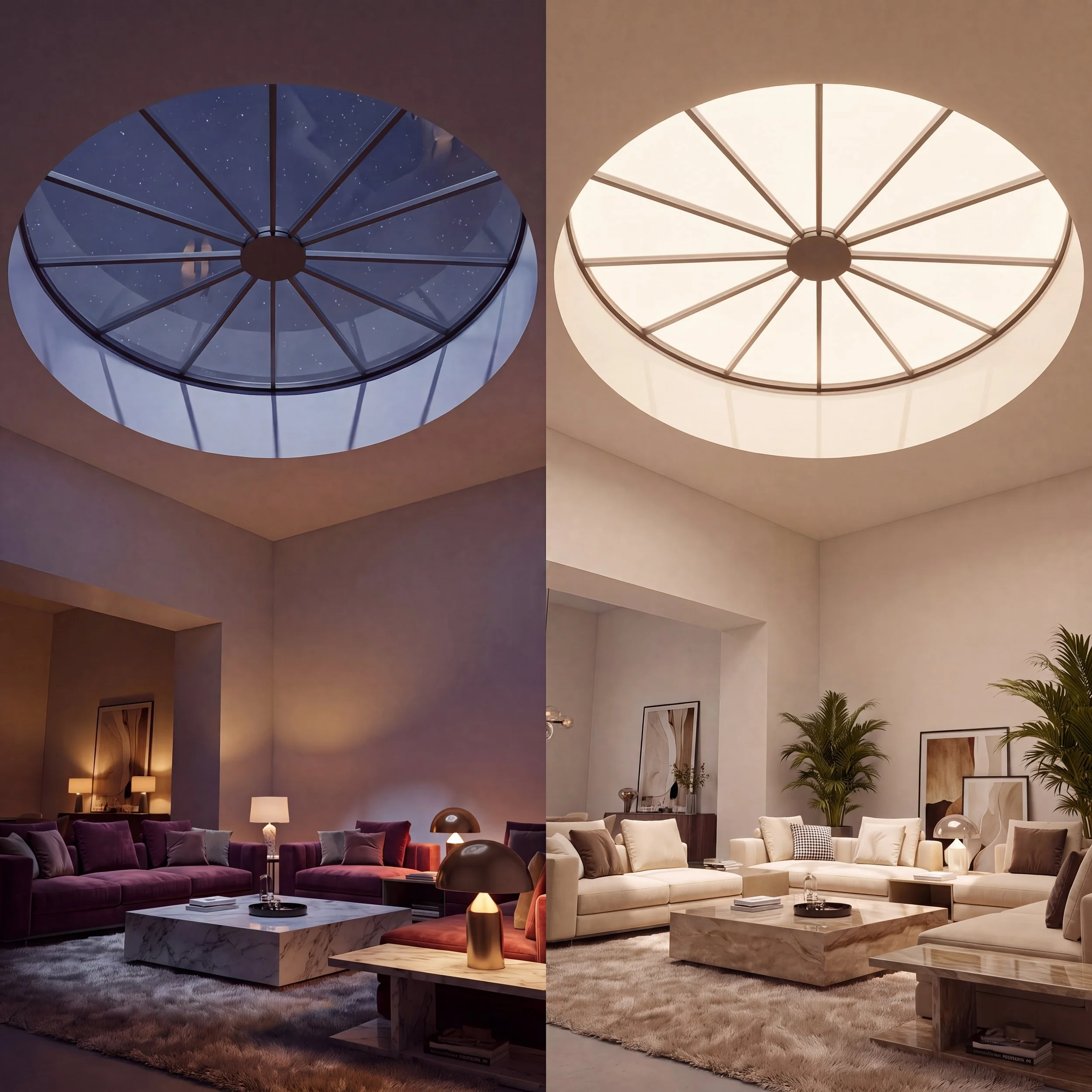

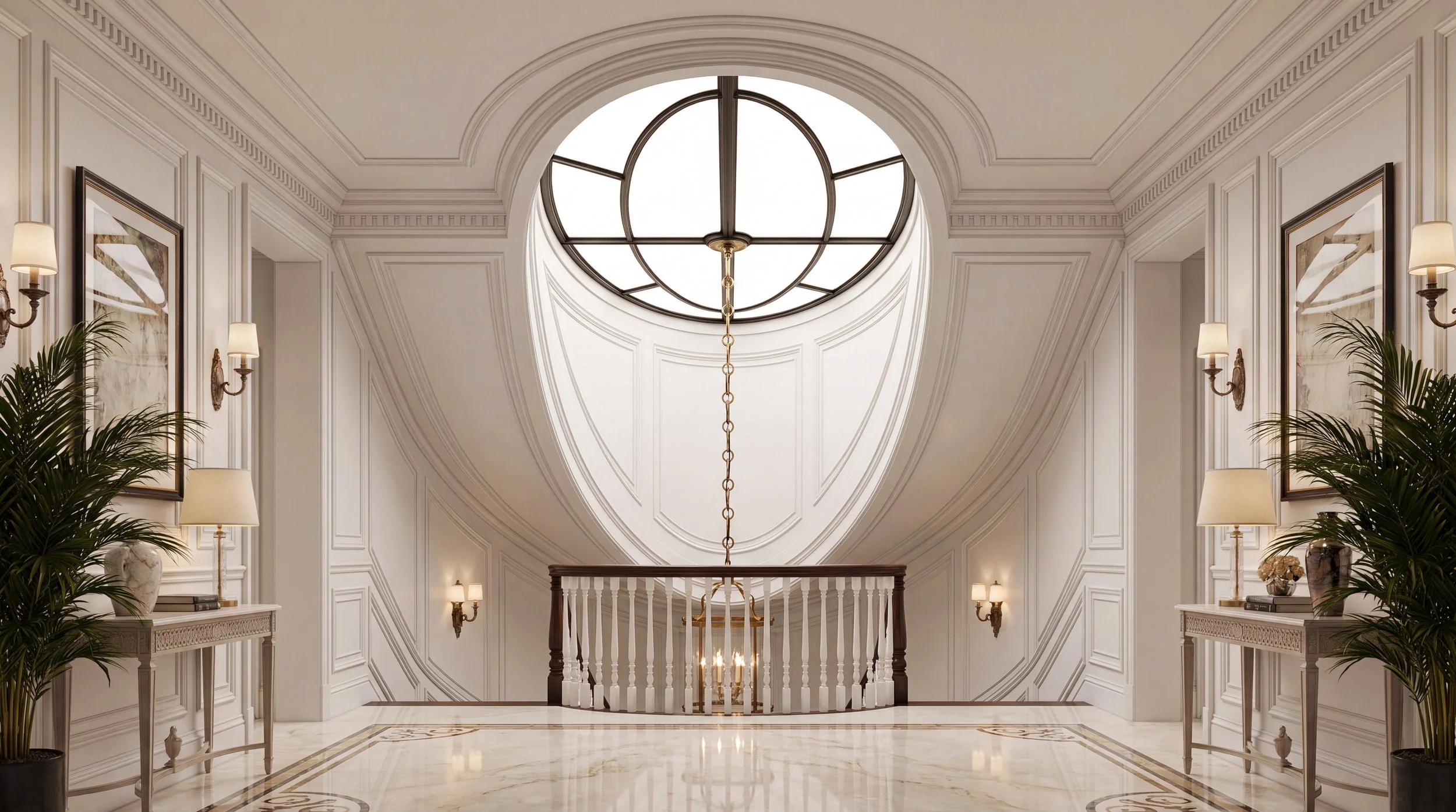

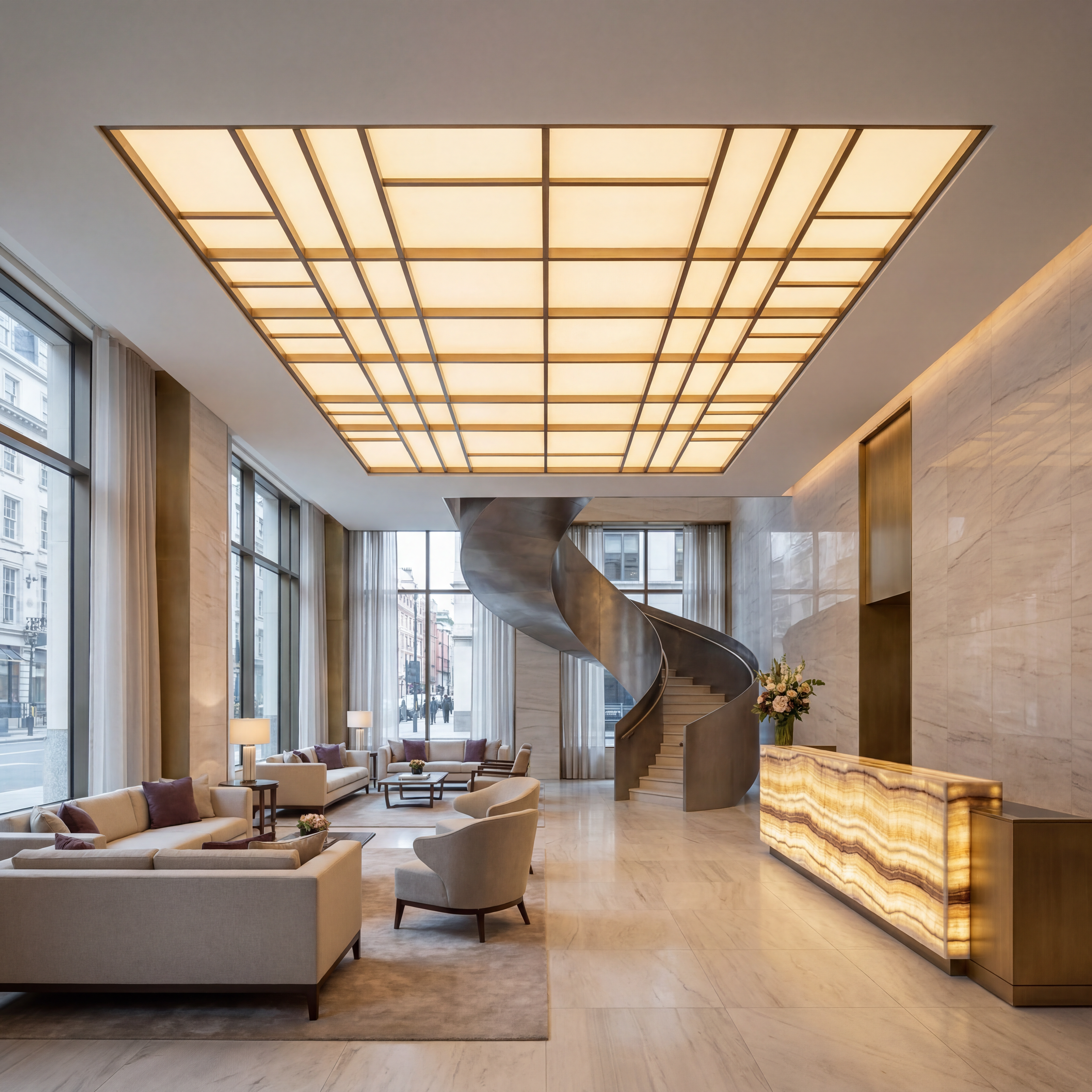

The beauty of natural light, anywhere. Backlight Skylight panels transform interiors with perfectly uniform illumination, exceptional visual comfort and elegant architectural integration. Powered by our exclusive MAGIC CLOUD and GHOST technologies, they offer outstanding lighting performance and limitless design flexibility for any project.

Perfectly uniform light
Custom sizes and shapes
CRI 95+
Several Kelvin available

Technical
specs

Aluminium
PMMA transparent
PMMA Opal Satin finish
LED PCB
WIDTH
MM width 203.2 to 1219.2 mm
INCHES width 8.0 to 48.0 in
LENGTH
MM length 203.2 to 3048.0 mm
INCHES length 8.0 to 120.0 in
(Maximum measurements depend on the scope of work and you will find them on the BROCHURE.)
THICKNESS
MM 18.5 mm to 35 mm
INCHES 0.728 “ to 1.378 “
(depending on the model)
WEIGHT
5.12 lbs/sq. ft (25.0 kg/sq. mt)
EMISSION DIFFUSED
KELVIN : various
LUMENS 70 lm delivered for each line meter of long side of panel

CRI>95
INPUT24VDC

POWER CONS.

28W/mt - 9W/ft of longer side of panel
DRIVER

AC DC 24V DC OUTPUT (class 2 Power Unit)
DIMMABILITY

No dimming
0-10V
Dali
DMX
ELV/MLV
Lutron Ecosystem
