MAGIC CLOUD

UNIFORM LIGHTING PANELS ON MEASURE

MAGIC CLOUD is a customizable, made-to-measure and made-to-order illuminated panel with uniform lighting emission, even in irregular shapes, and customizable mounting systems to suit the needs of the project.

Thanks to its cutting-edge technology, MAGIC CLOUD guarantees uniform lighting in a veri low thickness , creating a magical and welcoming atmosphere.

It is ideal for the architectural and design sector, as it allows for the creation of suggestive and original environments, but also for the Lighting sector as it offers noteworthy illuminotechnical properties.

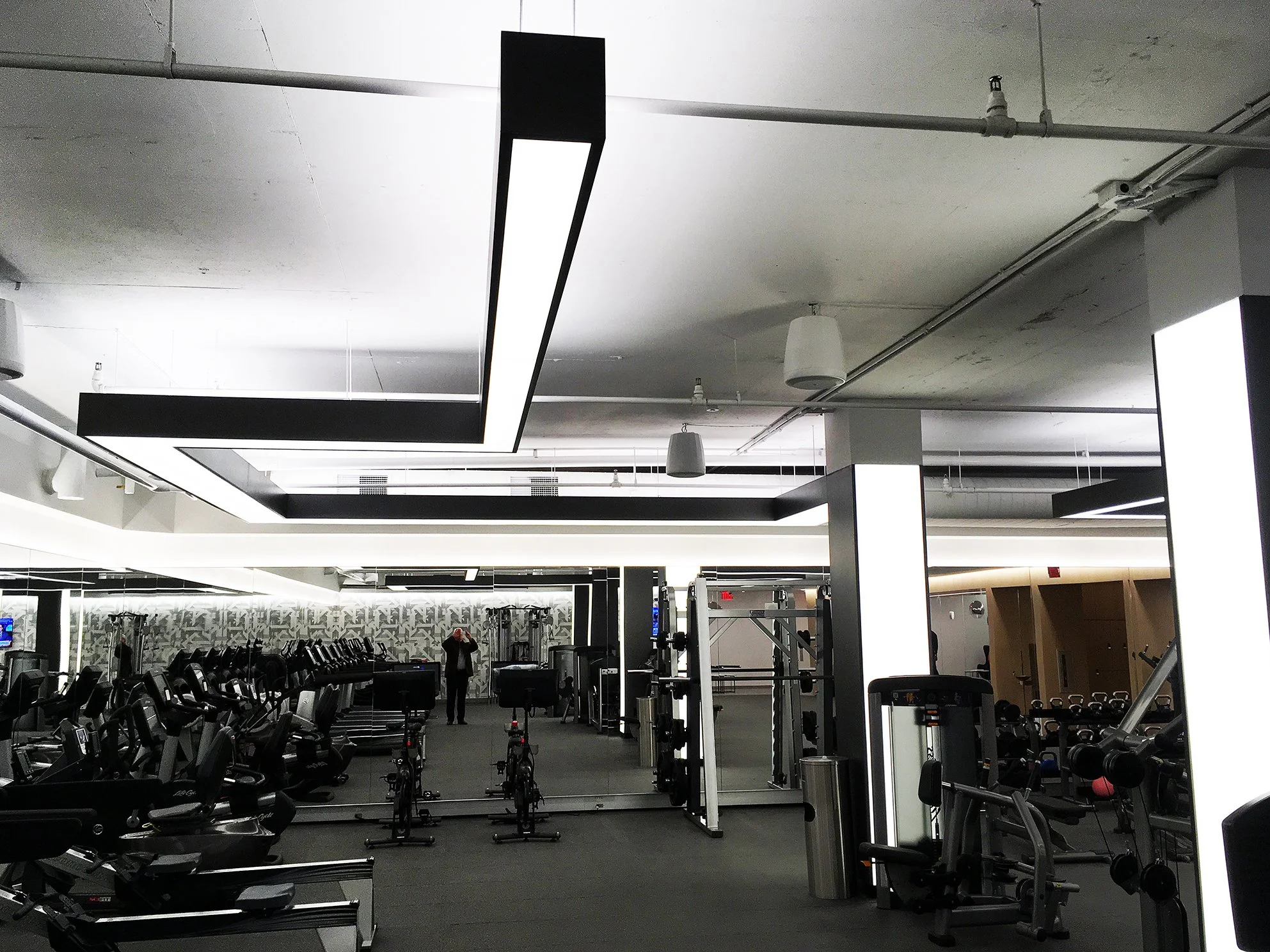

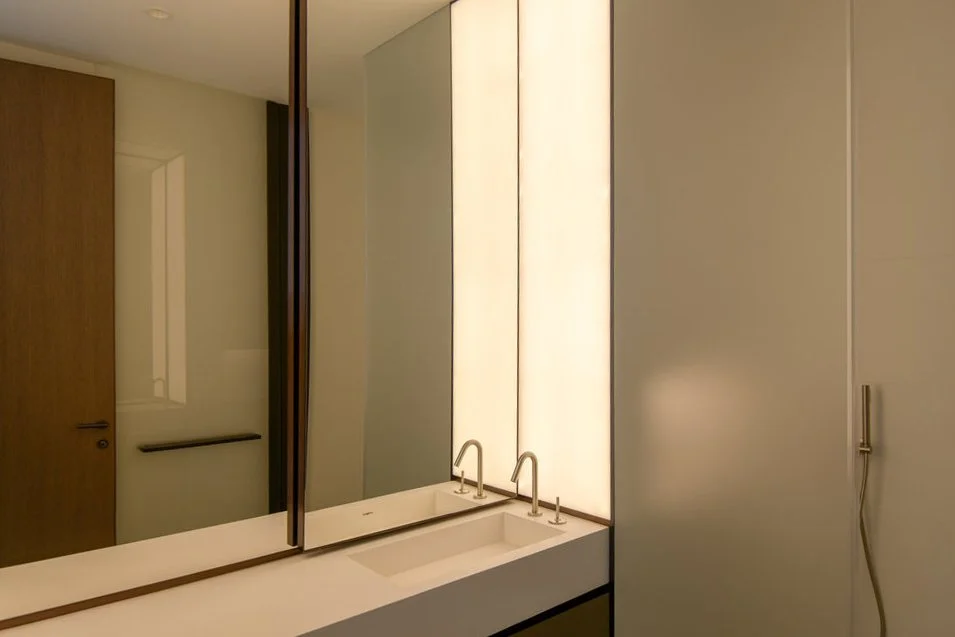

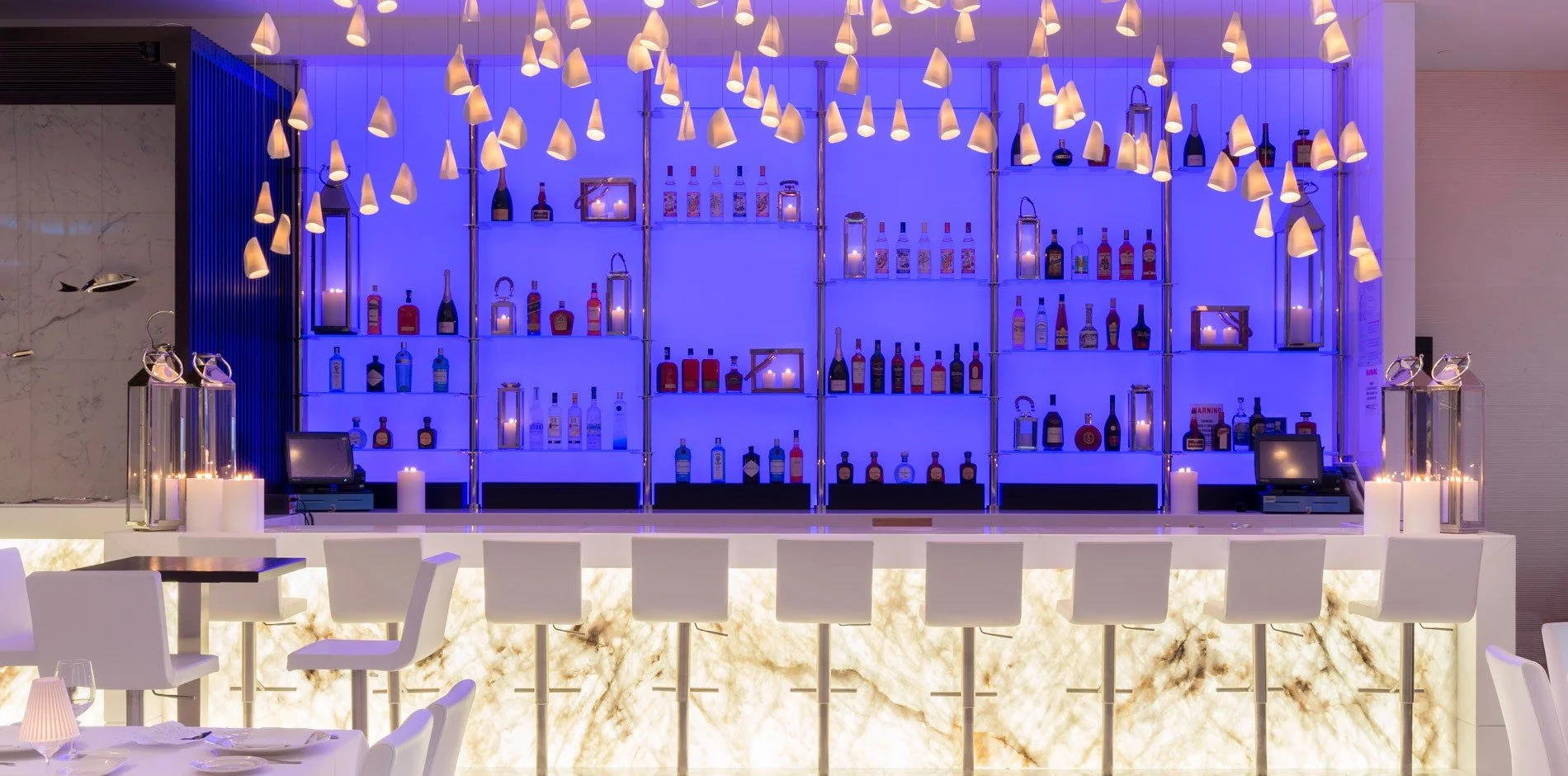

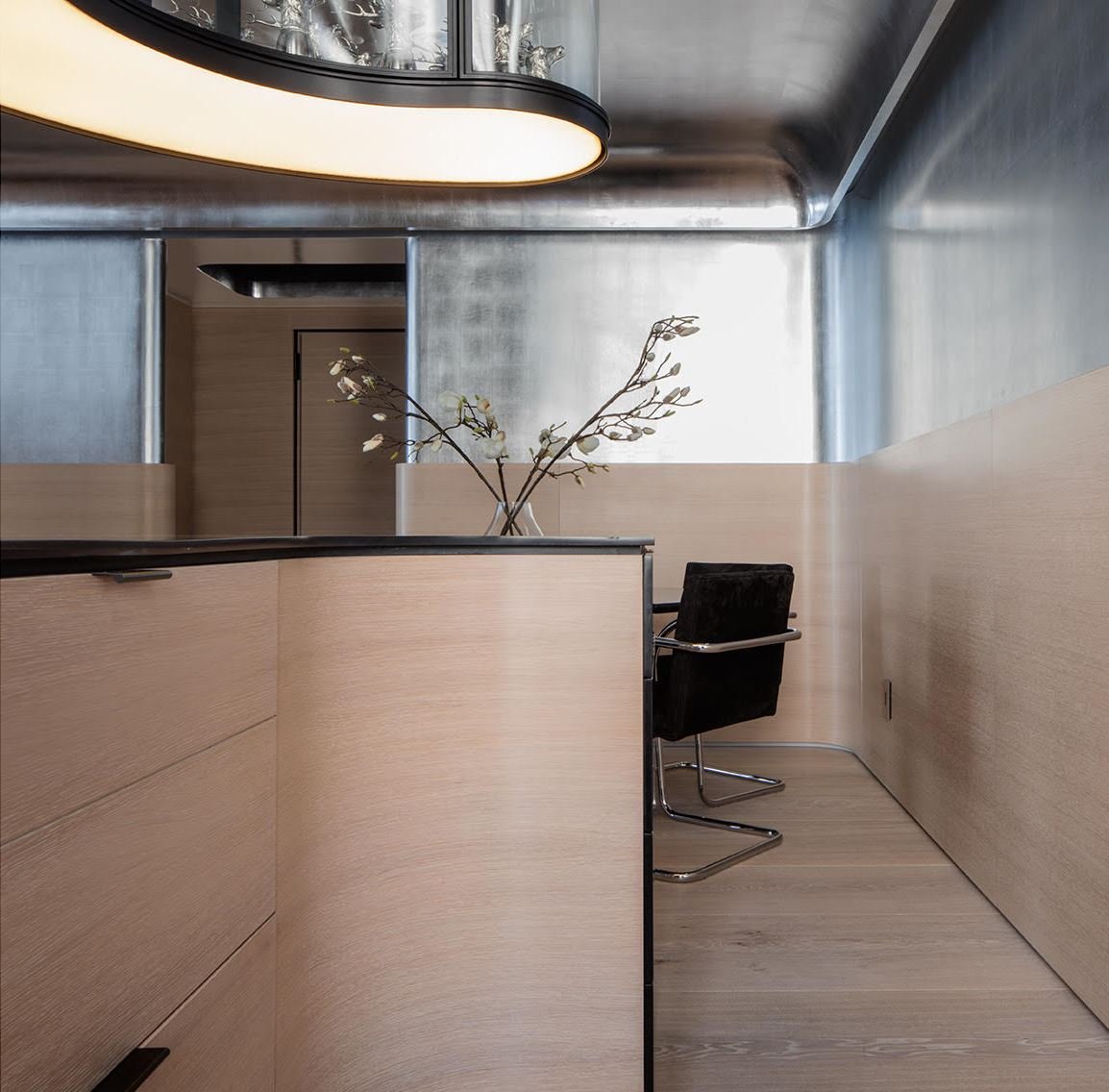

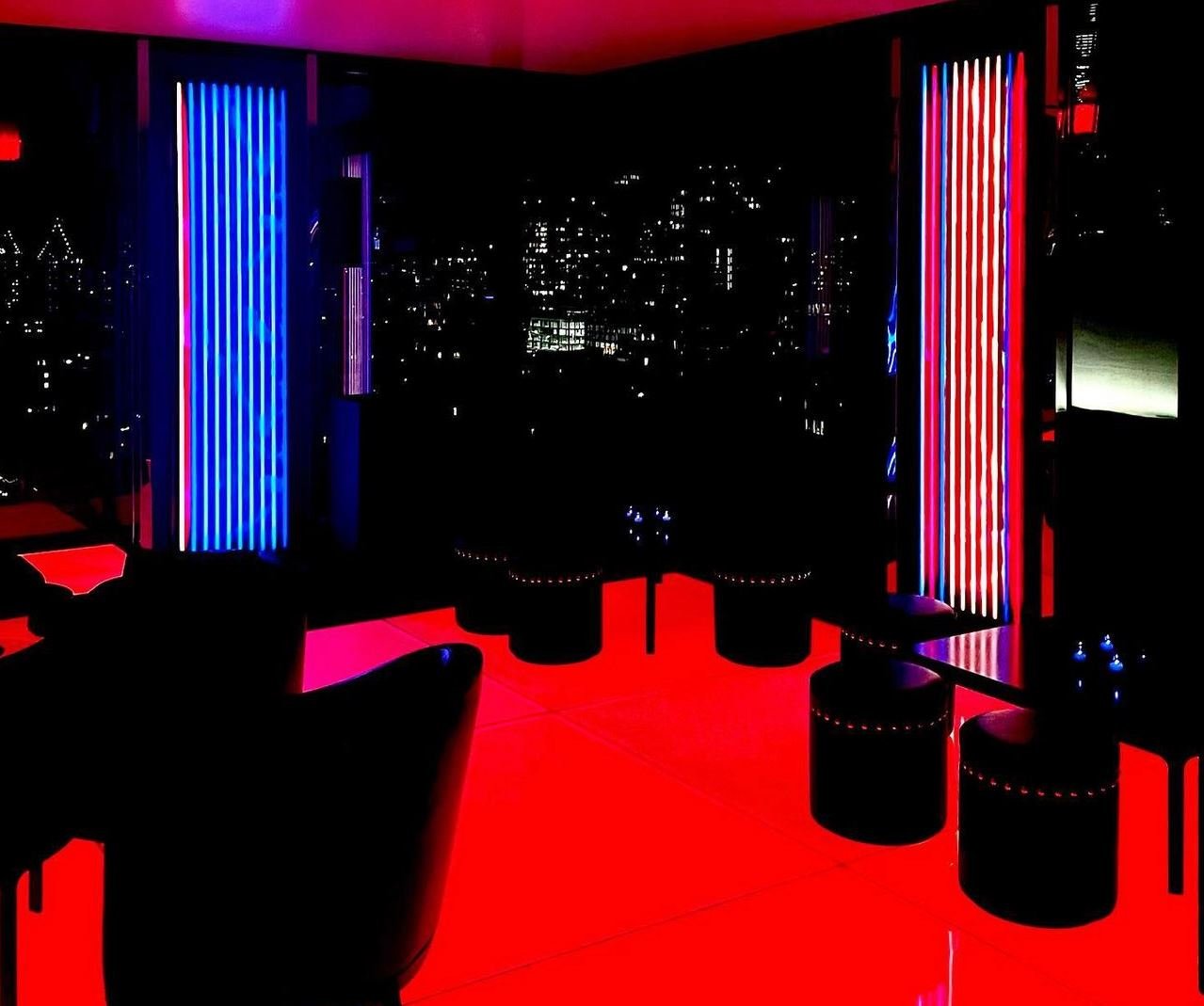

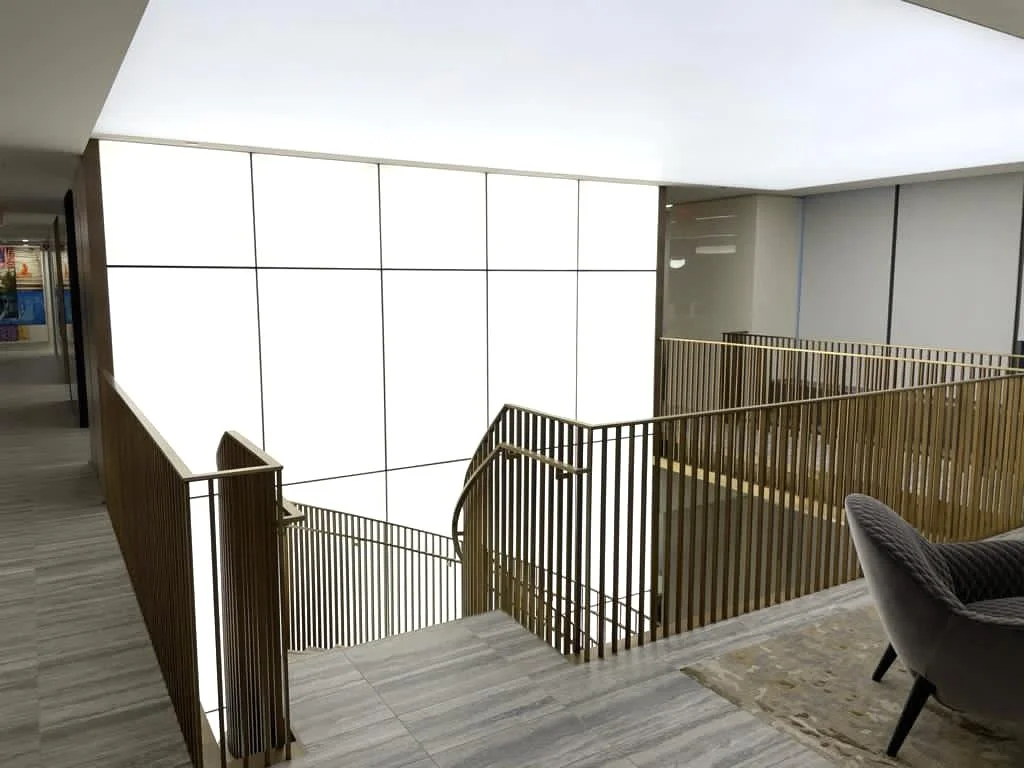

Primarily used to create illuminated surfaces such as floors, ceilings or walls, MAGIC CLOUD is also the best solution for backlighting other translucent materials such as stones, resins, perforated metals, decorative glasses, and many others.

It is also possible to print any high-resolution image on the surface of the illuminated panel.

Technical
specs

Aluminium White RAL 9010
(Custom RAL under request)

PMMA ( Acrylic) Satin Anti-Reflective (Gloss under request)
LED PCB
WIDTH
MM width 203.2 to 2006.6 mm
INCHES width 8.0 to 79.0 in
LENGTH
MM length 203.2 to 3048.0 mm
INCHES length 8.0 to 120.0 in
(Maximum measurements depend on the scope of work and you will find them on the BROCHURE.)
THICKNESS
MM 17.5 to 41
INCHES 0.69 to 1.62
(depending on the scope of work)
WEIGHT
5.7 lbs/sq. ft (25 kg/sq. mt)
EMISSION DIFFUSED
KELVIN 2000K-3000K-3500K-4100K-5000K-TW 2000 to 6500K- TW 2700 to 6500K - RGB - DIM to Warm - RGBW - RGBTW

LUMENS

Standard bright 890 lm per linear meter (280 lm per linear ft) - High bright 1632 lm per linear meter (570 lm per linear ft)
CRI>95
R9>90
MacAdam 3 Step
INPUT
24VDC
POWER CONS.
Standard bright (14 W/mt - 4.5 W/ft) - High bright (28 W/mt - 9 W/ft)
DRIVER
AC DC 24V DC OUTPUT (class 2 Power Unit)
DIMMABILITY
0-10V, Dali, DMX, ELV/MLV, Lutron Ecosystem, other systems under request
