SLIMBY

Essential backlighting, by Backlight.

Slimby is Backlight’s ultra-thin, lightweight, and essential LED panel, engineered to deliver uniform,

reliable, and cost-effective backlighting. It’s the ideal solution when installation space is limited and budget efficiency is key, without compromising the premium light quality that defines all Backlight

products.

Available with or without pre-drilled mounting holes, Slimby is designed for direct surface

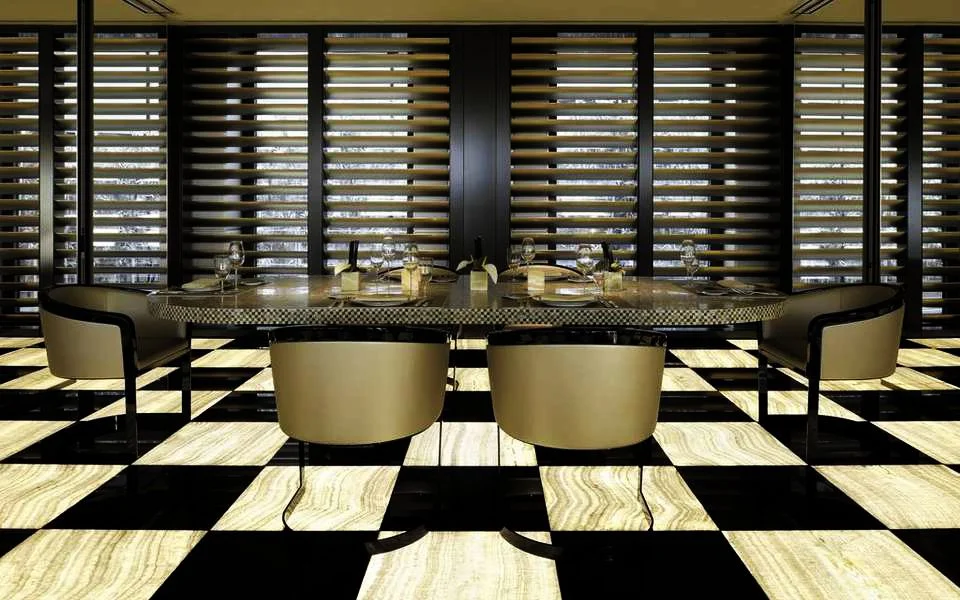

installation. It is intended exclusively for backlighting diffusive materials such as onyx, alabaster, and any surface diffusive enough to visually conceal the panel’s fixing points.

Slimby comes in two versions:

SLIMBY CLEAR: transparent panel, ideal for use behind highly diffusive front materials.

SLIMBY DIFFUSED: integrated diffusion panel, providing a softer and more even light, perfect with slightly less diffusive surfaces.

Proudly designed and manufactured in Italy, Slimby reflects the same optical precision and technical reliability that have made Backlight a trusted name in premium lighting solutions.

Technical
specs

Aluminium
PMMA transparent
PMMA Opal Glossy or Satin transparent
LED PCB
WIDTH
MM width 203.2 to 1219.2 mm
INCHES width 8.0 to 48.0 in
LENGTH
MM length 203.2 to 3048.0 mm
INCHES length 8.0 to 120.0 in
(Maximum measurements depend on the scope of work and you will find them on the BROCHURE.)
THICKNESS
MM 10,5 and 8,5 mm
INCHES 0.413 “ and 0.335 “
(depending on the model)
WEIGHT
2.85 lbs/sq. ft (12.5 kg/sq. mt)
EMISSION DIFFUSED
KELVIN 2700K-3000K-3500K-4100K-5000K
Tunable White 1800-3200K
Tunable White 3400-4100 K
Tunable WHite 2700-6500K
Dim to Warm 2 wires 1900-3200K
RGB
RGBW
RGBTW
LUMENS 70 lm delivered for each line meter of long side of panel

CRI>95
INPUT24VDC

POWER CONS.

28W/mt - 9W/ft of longer side of panel
DRIVER

AC DC 24V DC OUTPUT (class 2 Power Unit)
DIMMABILITY

No dimming
0-10V
Dali
DMX
ELV/MLV
Lutron Ecosystem
