WHEREVER

Uniform Lighting Panels on Measure

by POWER BANK

BROCHURE

WHEREVER

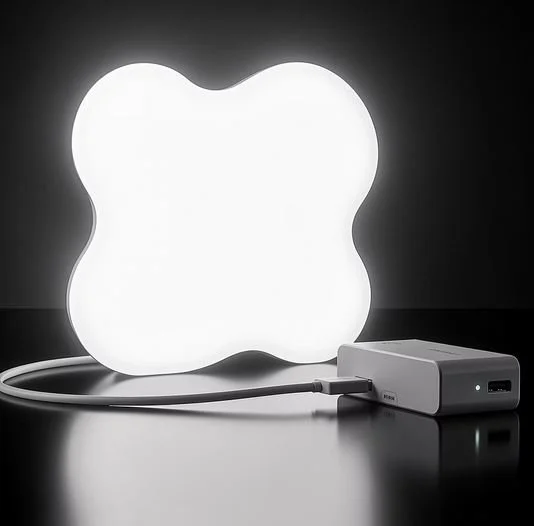

is a line of custom-made, perfectly uniform light panels powered by a power bank.
It brings Backlight’s quality and precision anywhere, without the need for fixed electrical connections.

Design freely. Install without constraints. Light anywhere.

No wiring. No invasive installation.
Just architectural light, ready to use.

Ideal for:

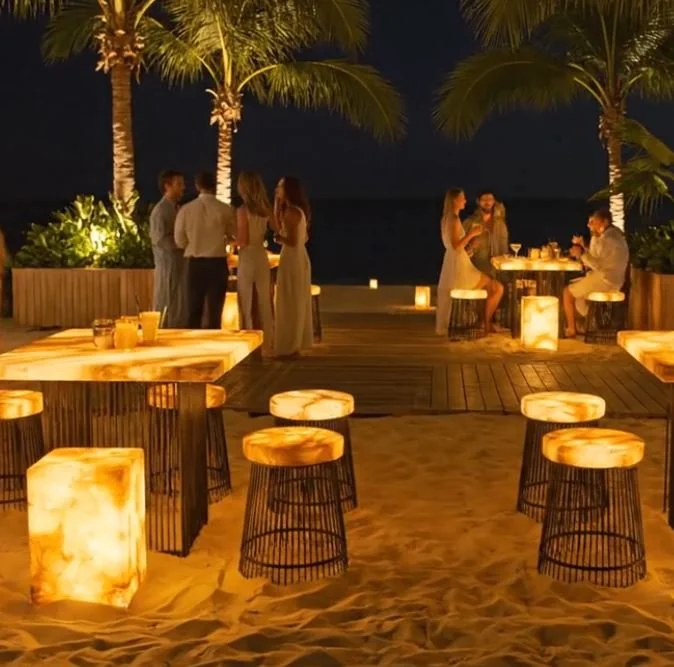

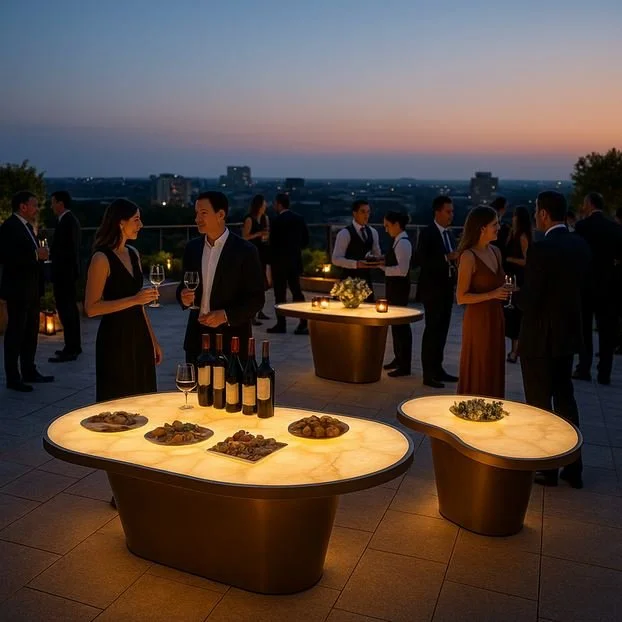

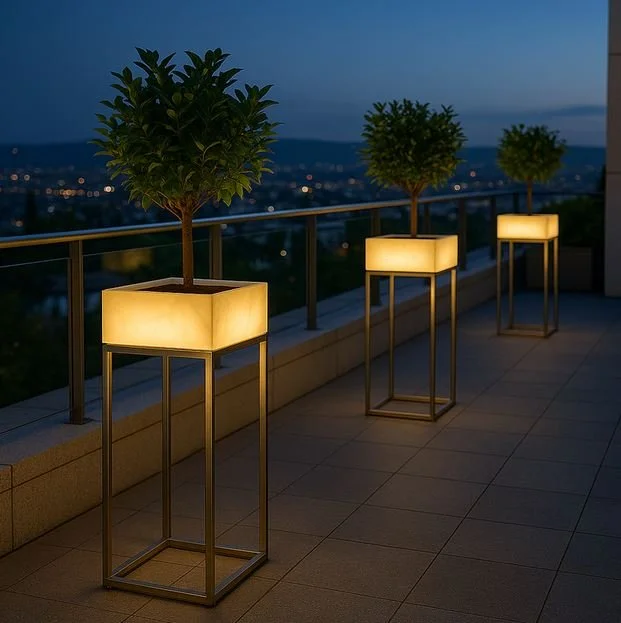

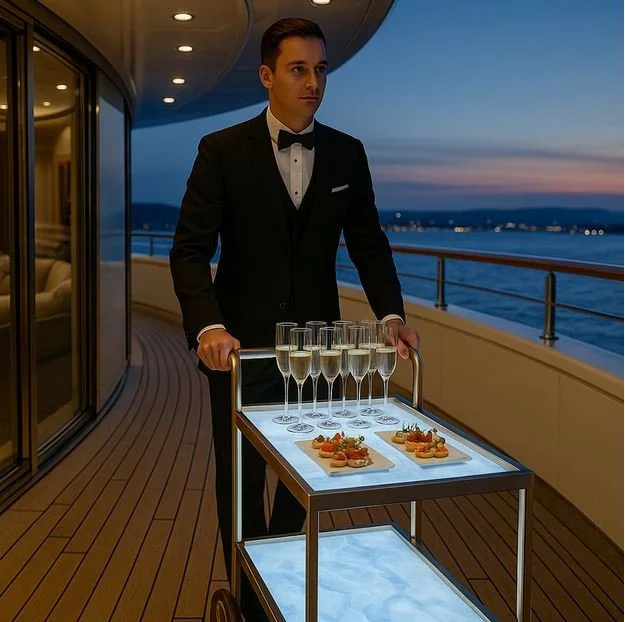

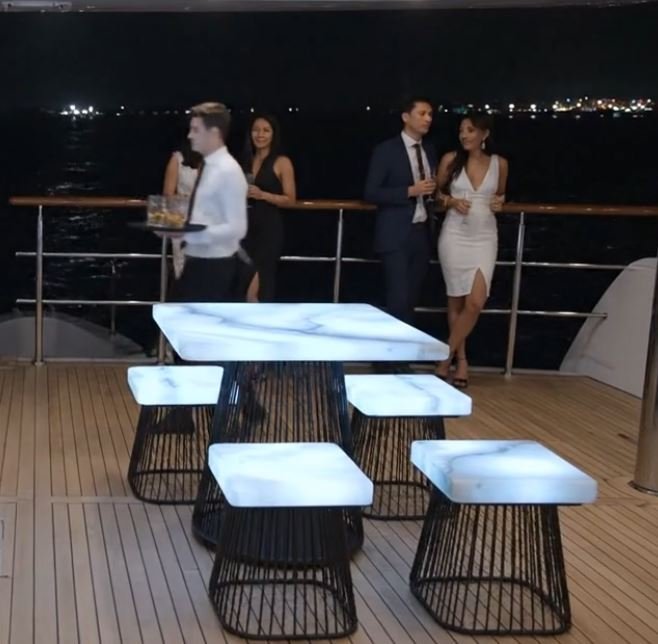

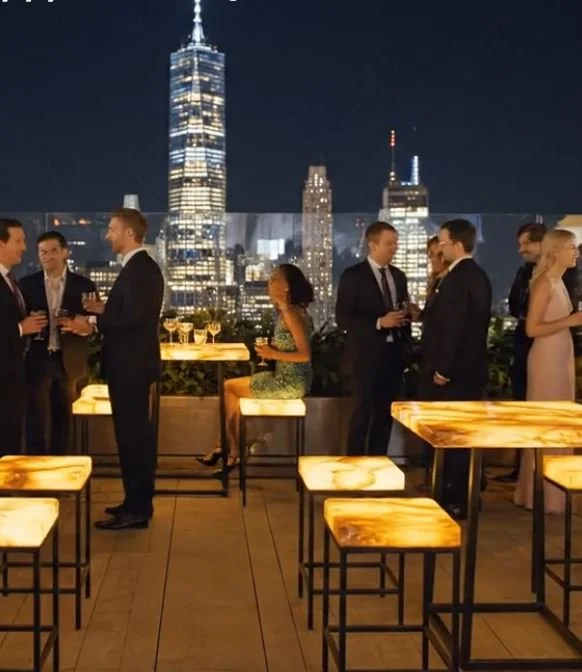

  • rooftops and terraces

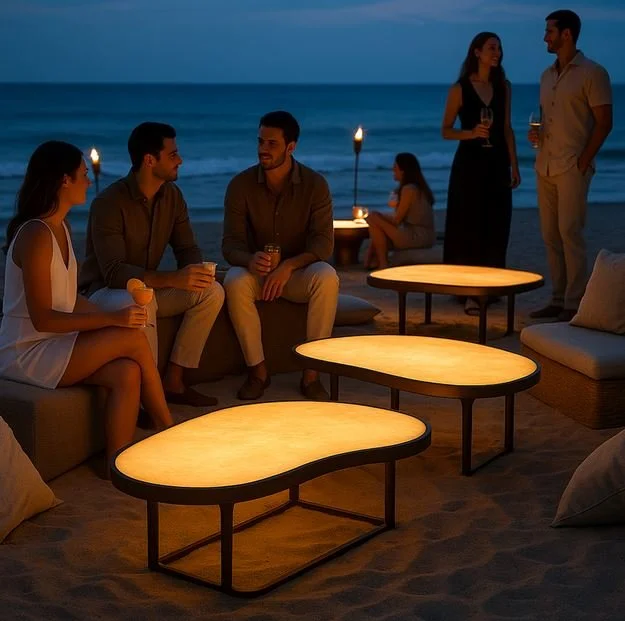

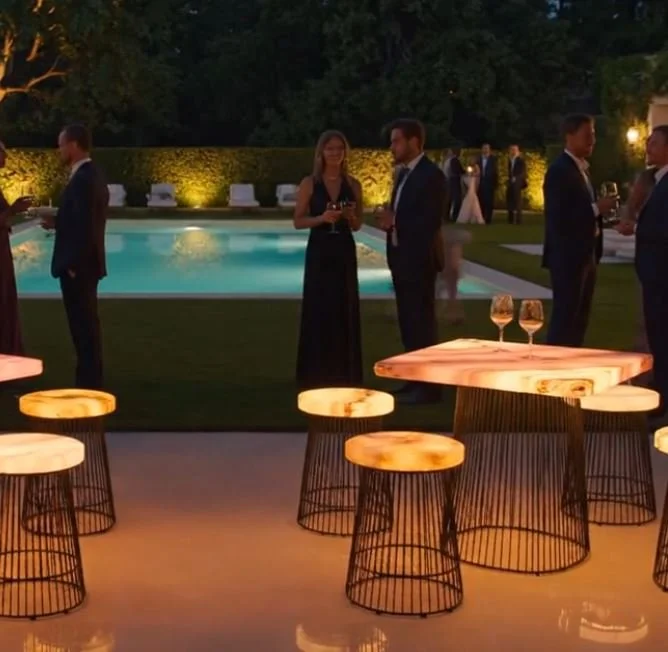

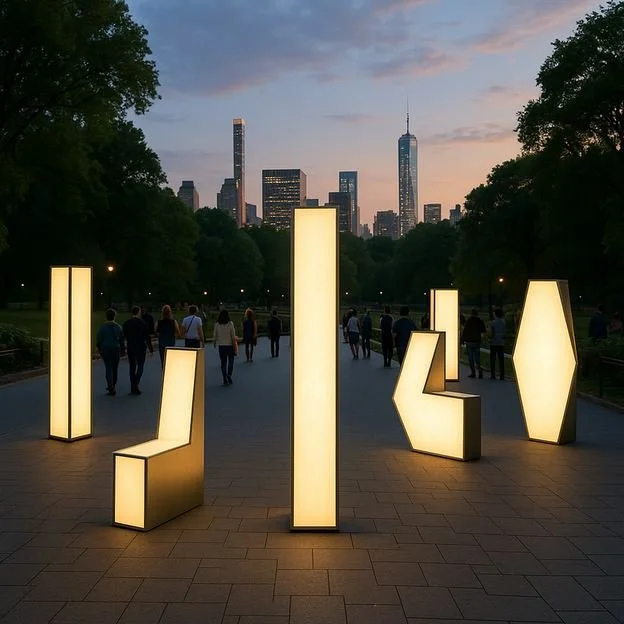

  • gardens and outdoor spaces

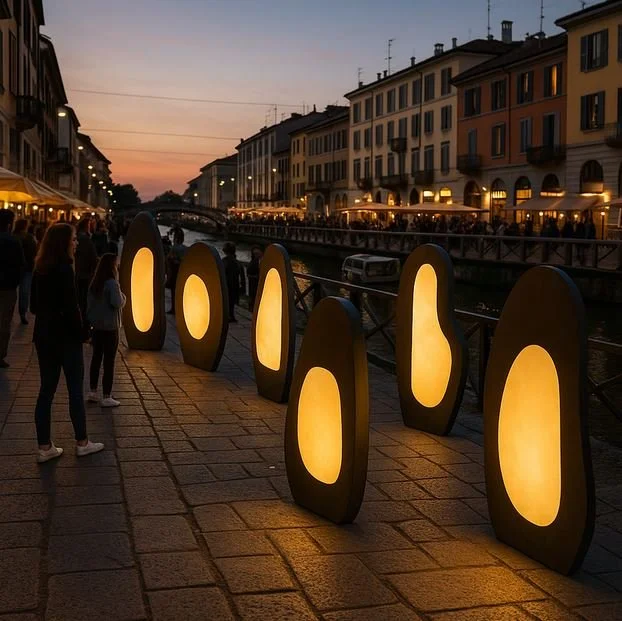

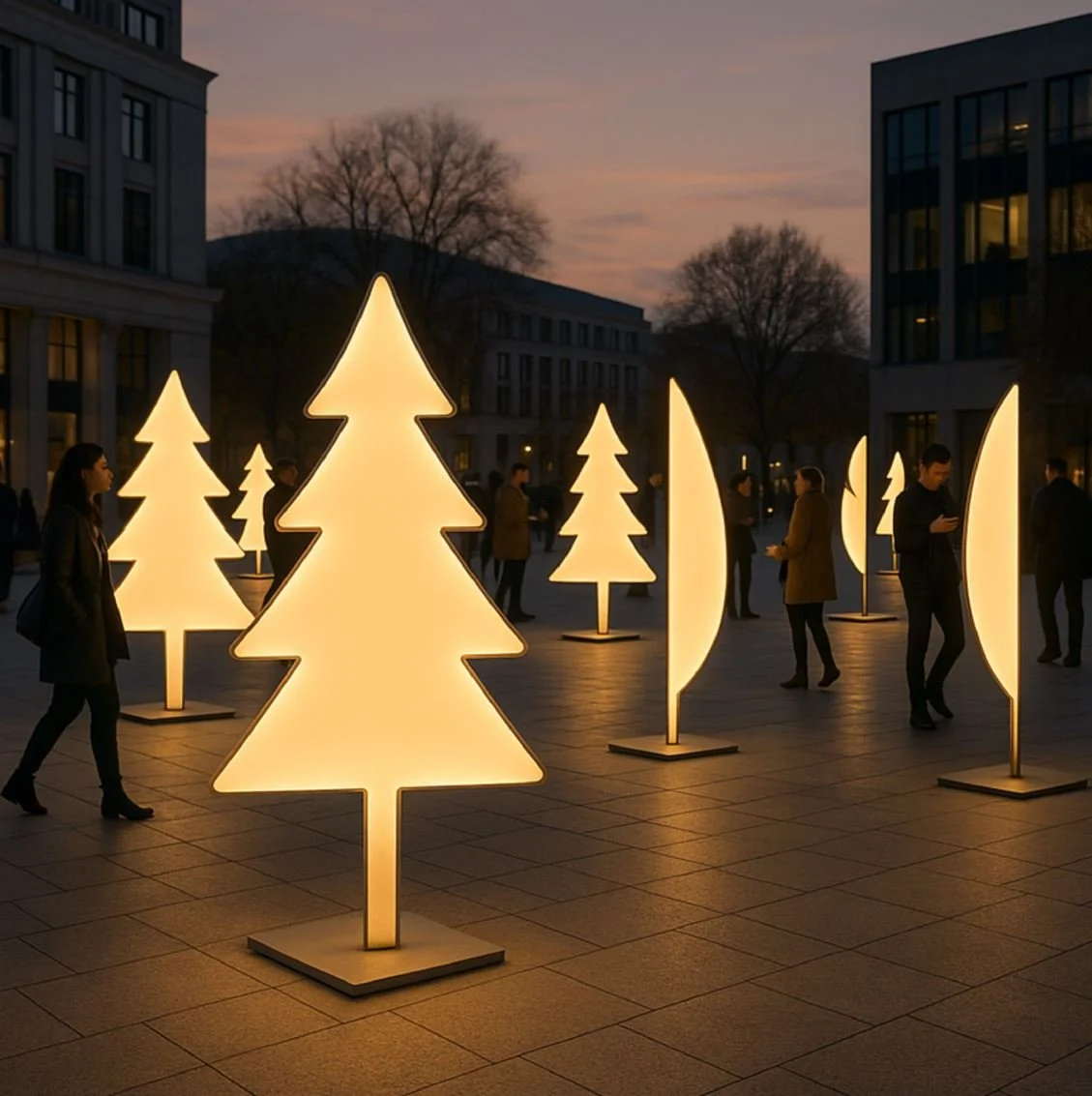

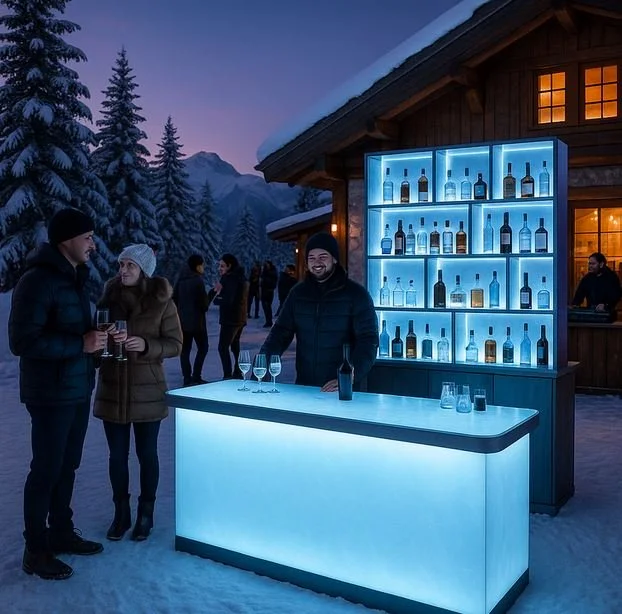

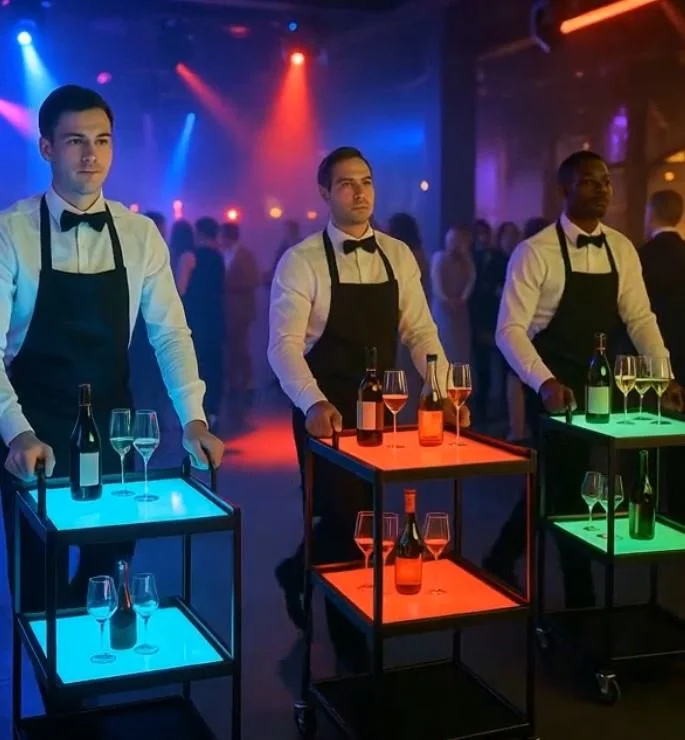

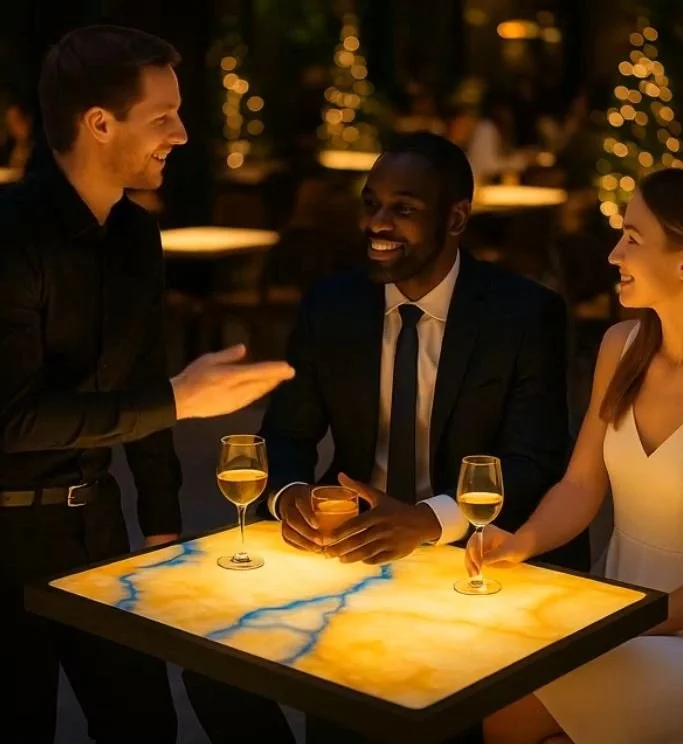

  • events and temporary installations

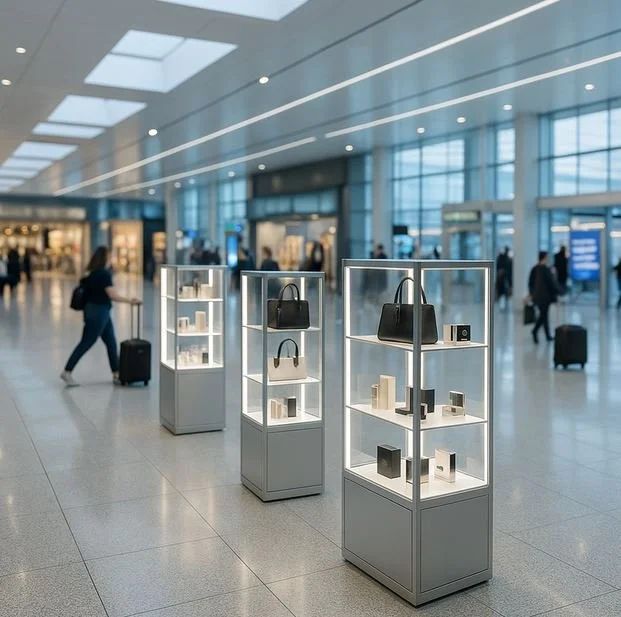

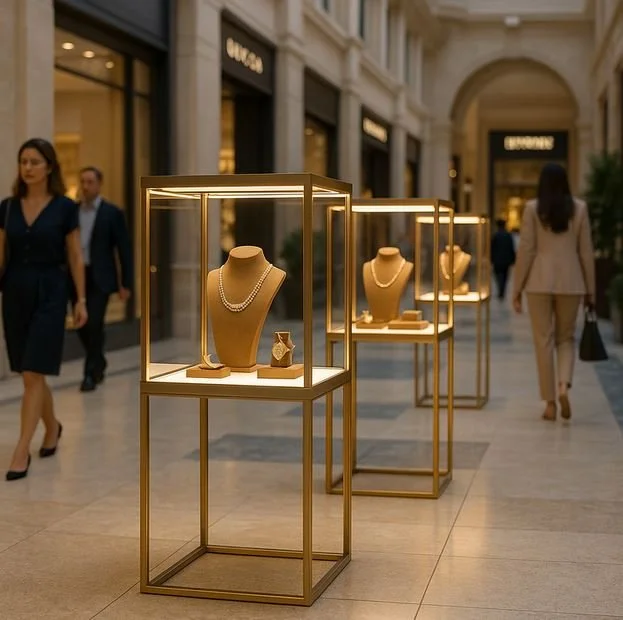

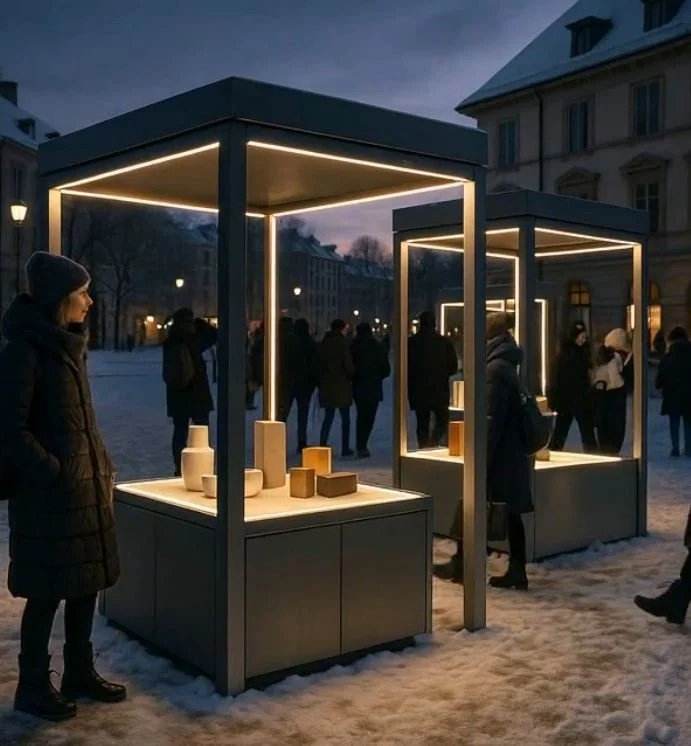

  • pop-ups and non-wired environments

  • Perfectly uniform light

  • Custom sizes and shapes

  • CRI 95+

  • Available 2700 - 3000 - 3500 and 4000K

Where it was once impossible, now it’s simply possible.

Technical
specs

  • Aluminium

    PMMA transparent

    PMMA Opal Satin finish

    LED PCB

  • WIDTH

    MM width 203.2 to 1219.2 mm
    INCHES width 8.0 to 48.0 in

    LENGTH

    MM length 203.2 to 3048.0 mm
    INCHES length 8.0 to 120.0 in

    (Maximum measurements depend on the scope of work and you will find them on the BROCHURE.)

    THICKNESS

    MM 18.5 mm to 35 mm
    INCHES 0.728 “ to 1.378 “
    (depending on the model)

    WEIGHT

    5.12 lbs/sq. ft (25.0 kg/sq. mt)

  • EMISSION DIFFUSED

    KELVIN 2700K-3000K-3500K-4000K

    LUMENS 70 lm delivered for each line meter of long side of panel

    CRI>95

  • INPUT24VDC

    POWER CONS.

    28W/mt - 9W/ft of longer side of panel

    DRIVER

    AC DC 24V DC OUTPUT (class 2 Power Unit)

    DIMMABILITY

    No dimming
    0-10V
    Dali
    DMX
    ELV/MLV
    Lutron Ecosystem

IP RATING

IP40 ( Dry Location)
IP54 ( Damp Location) under request

IK RATING
IK10

LIFE TIME
70.000 hrs

WARRANTY
3 Years (36 months)

Ceiling surface Mounted
Ceiling recessed Type IC Inherently protected
Wall surface Mounted
Storage Area of a Clothes Closet
